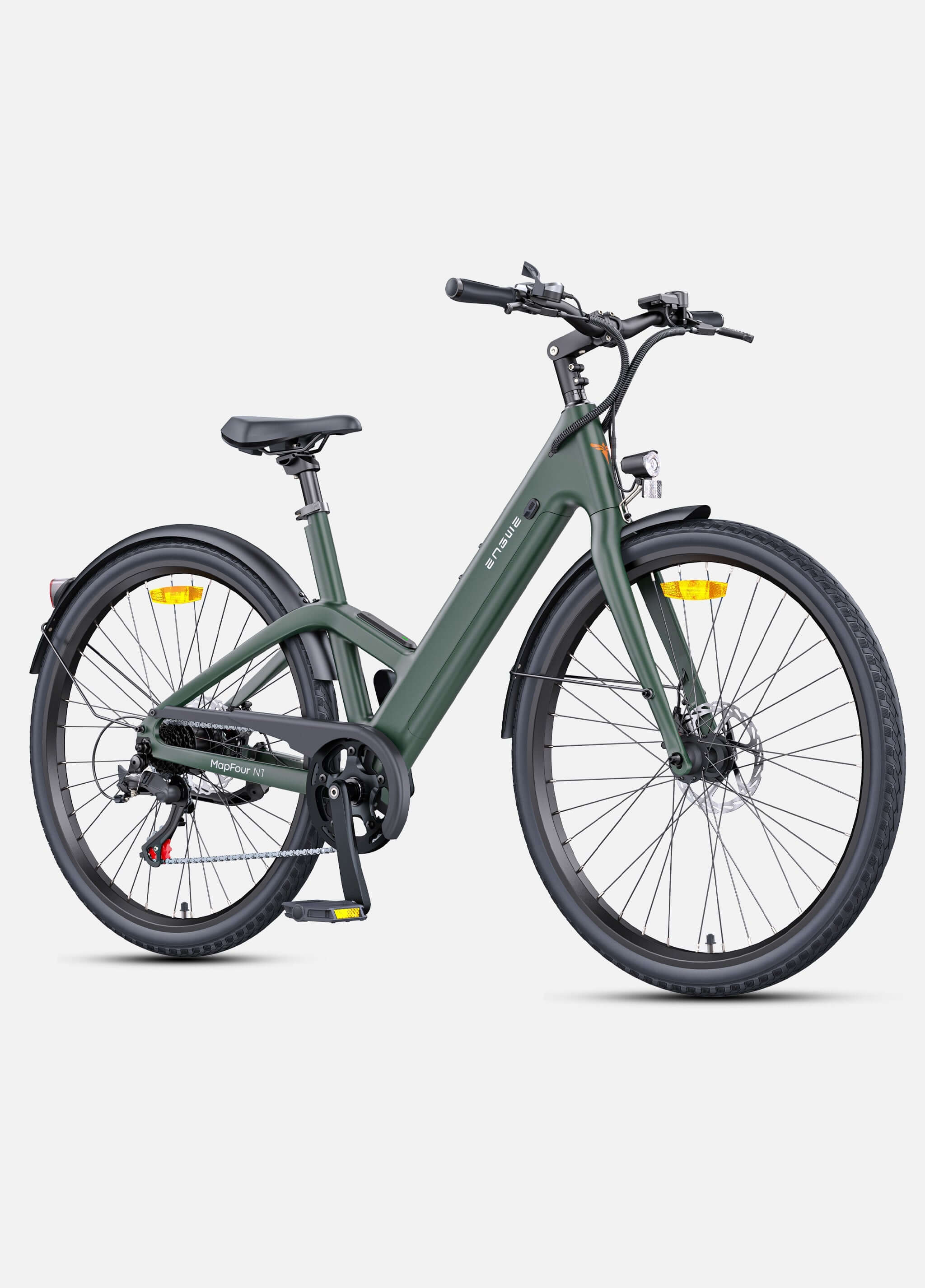

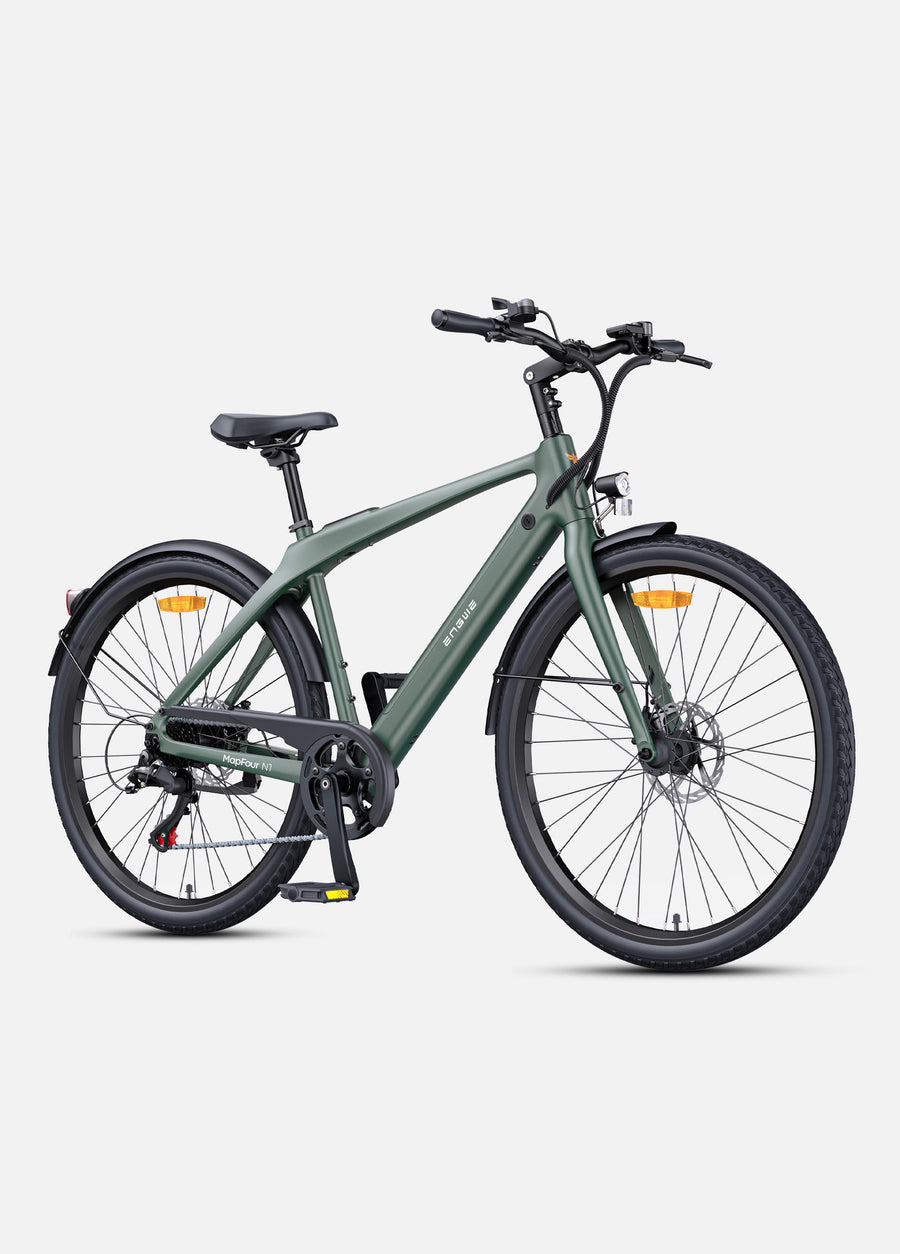

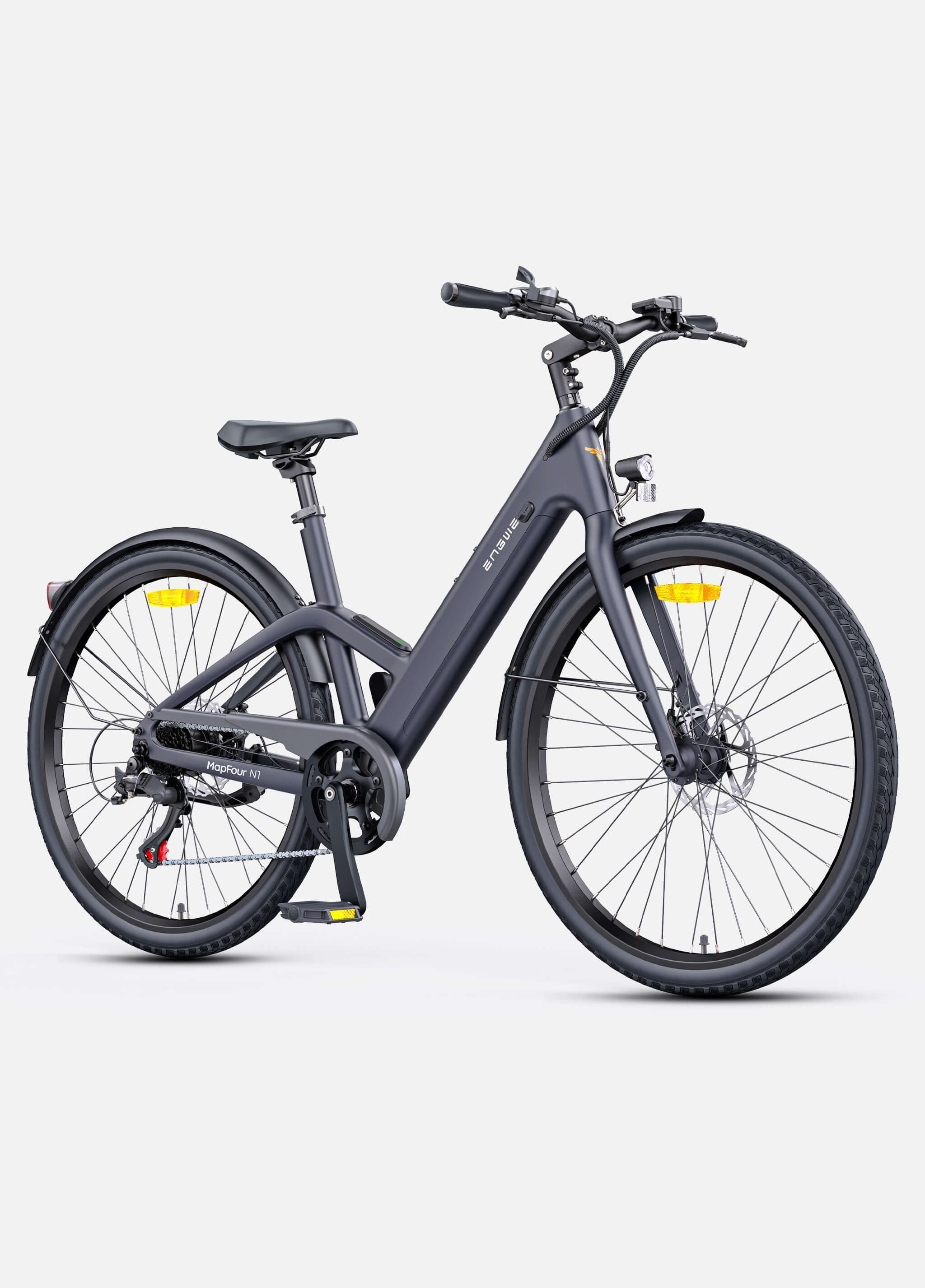

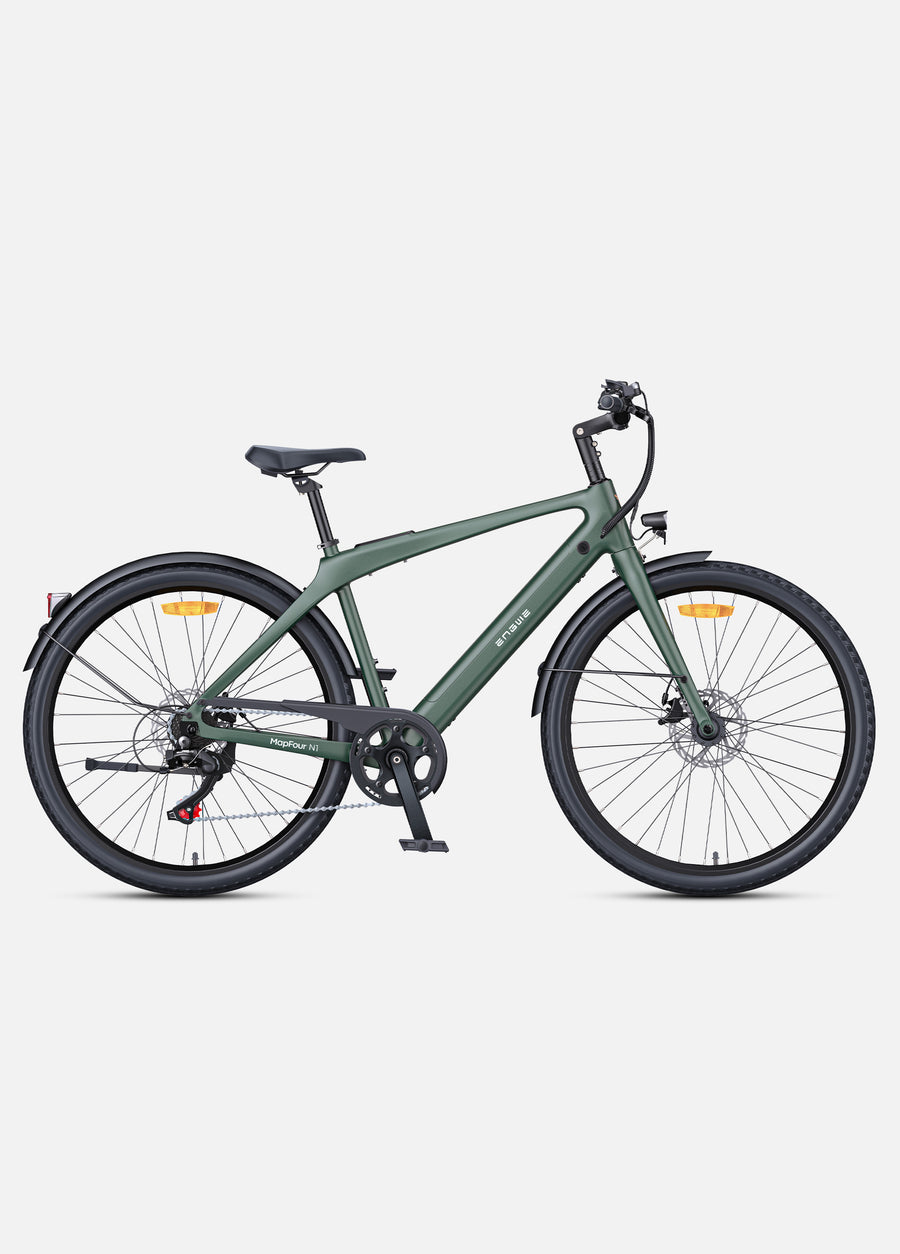

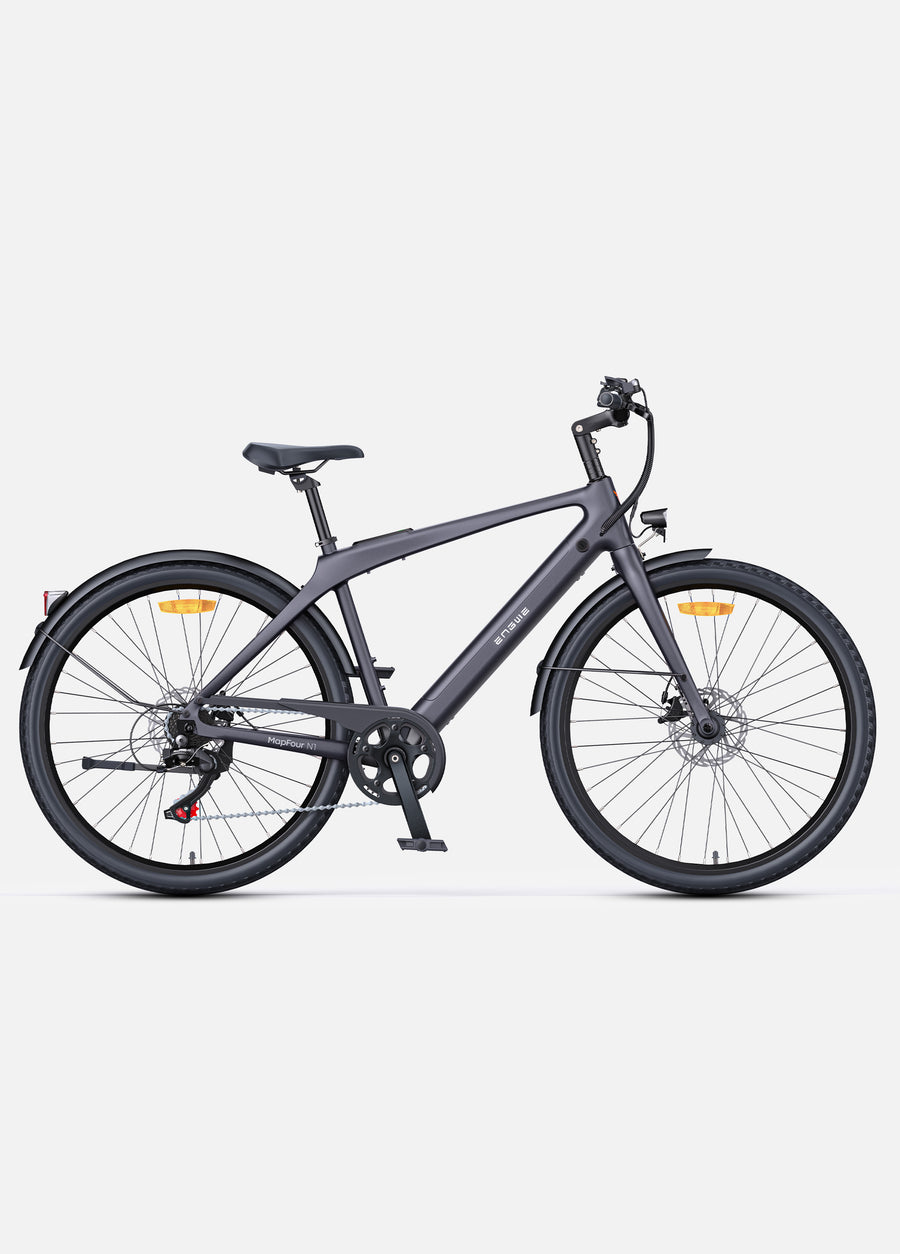

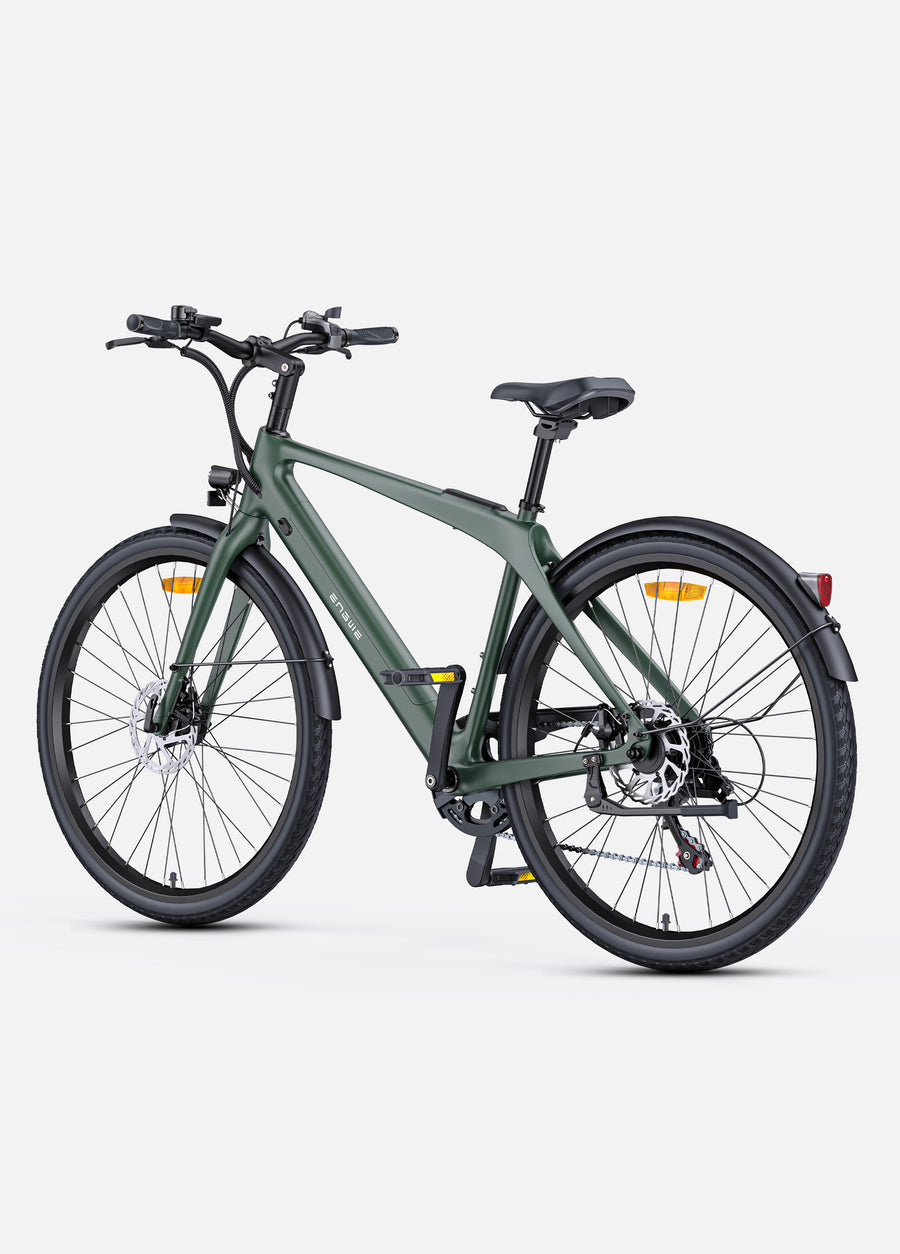

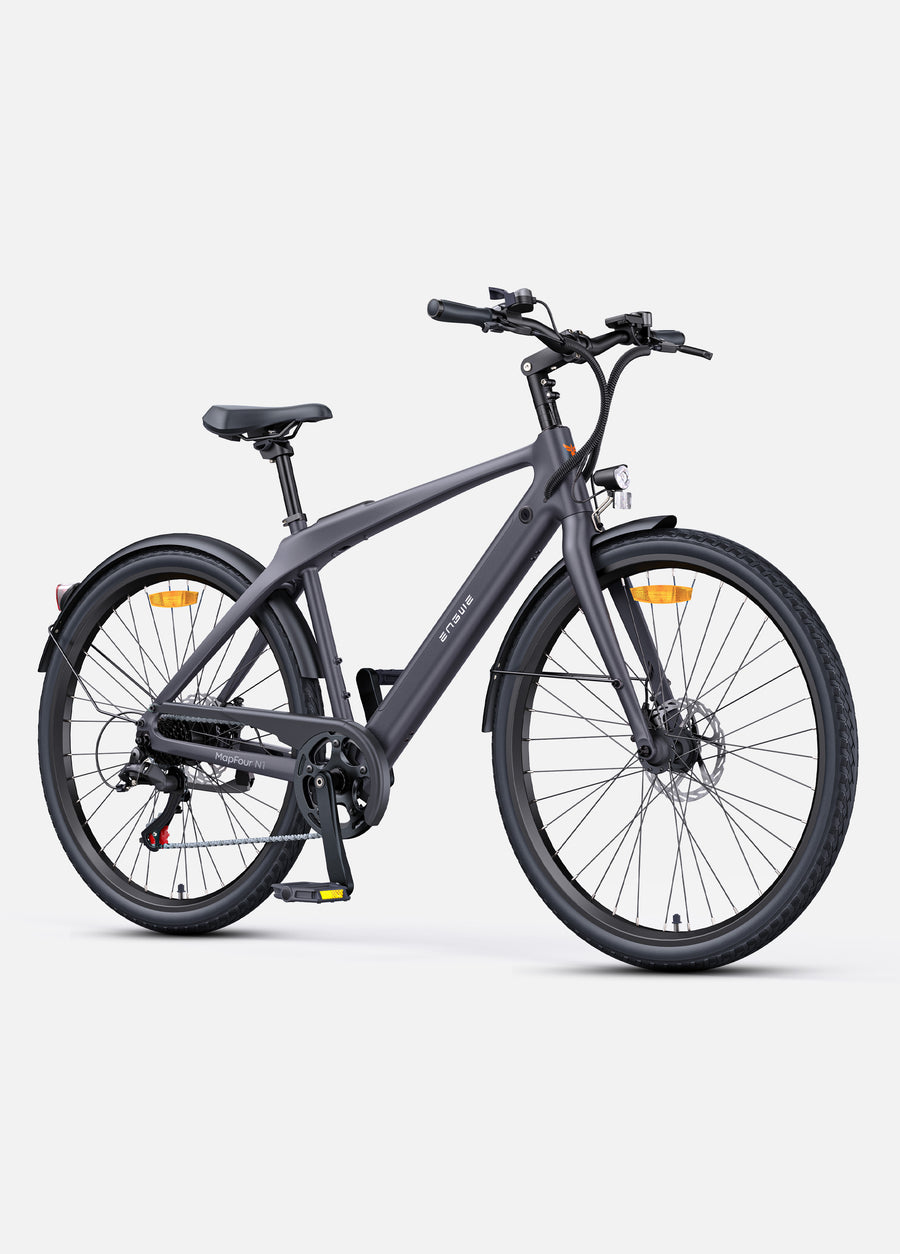

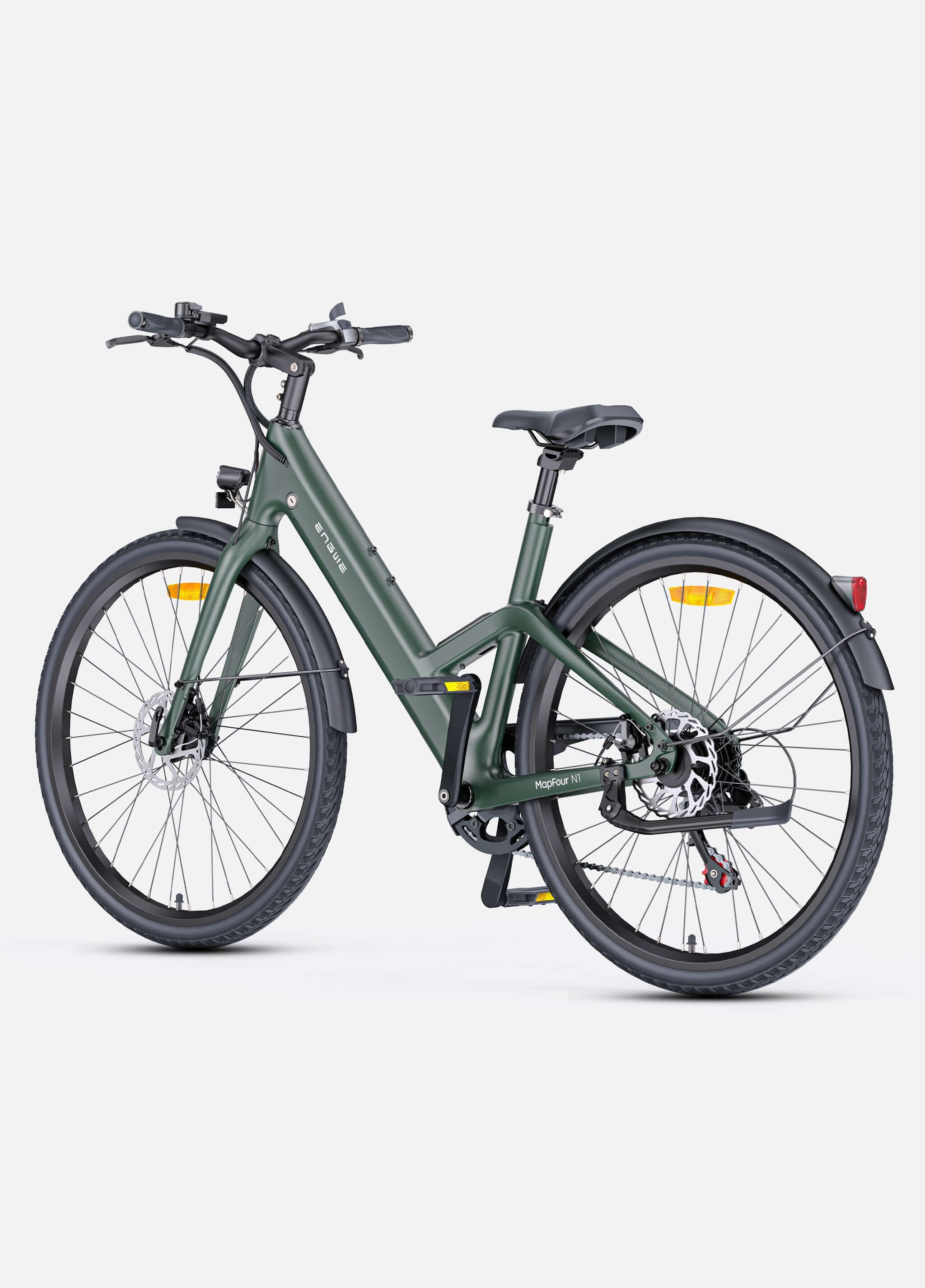

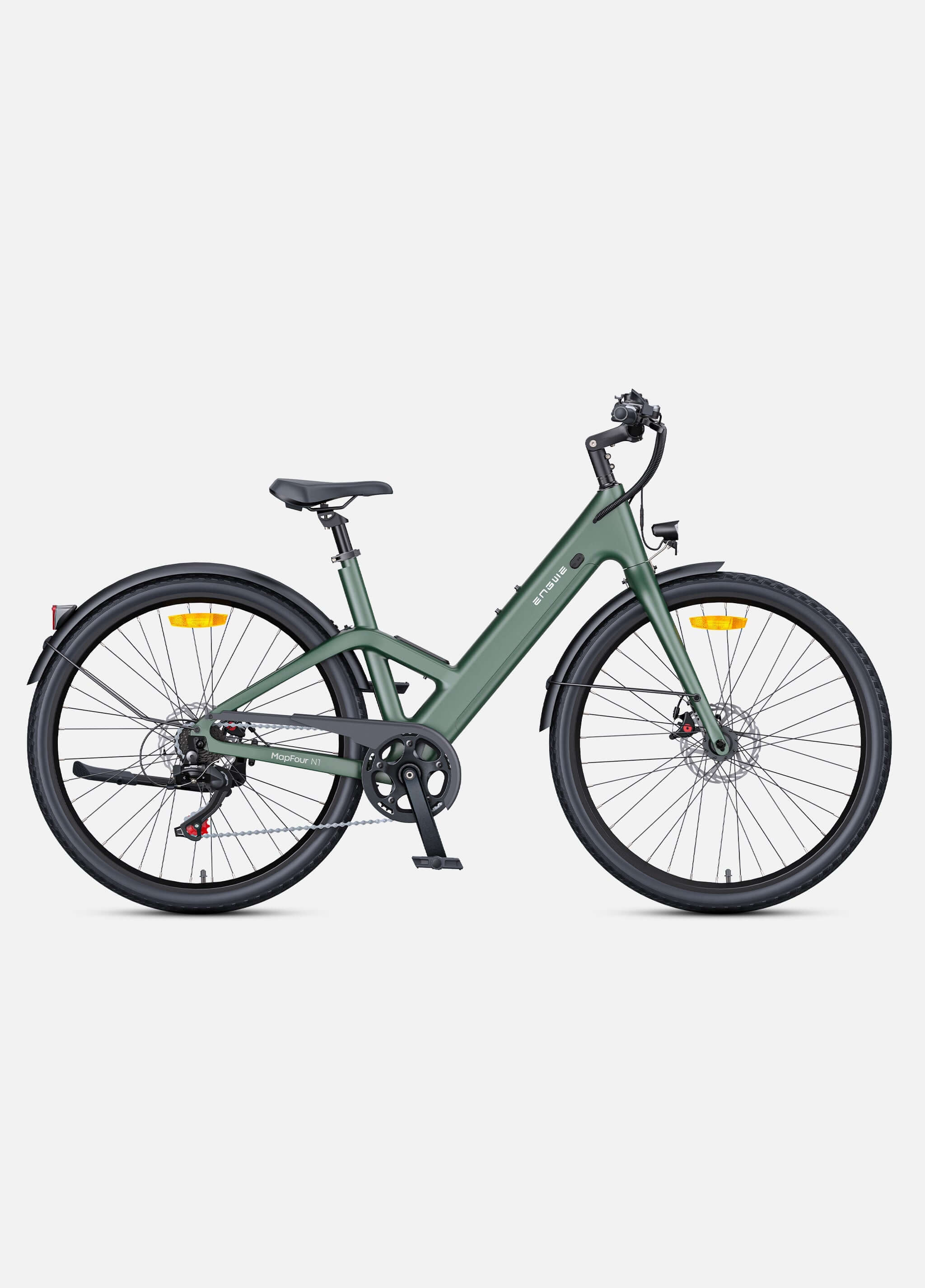

MAPFOUR N1 AIR 250W Ultra-lightweight 100KM Long Range Carbon Fiber City E-bike

Material: Carbon Fiber Frame, Aluminum Fork

Motor: MIVICE M070 Rear Hub Motor

Sensor: Torque Sensor

Max Torque: 40 Nm

Tires: 700 × 38C Spoke Tires

Lights: Front Light & Solar Tail Light

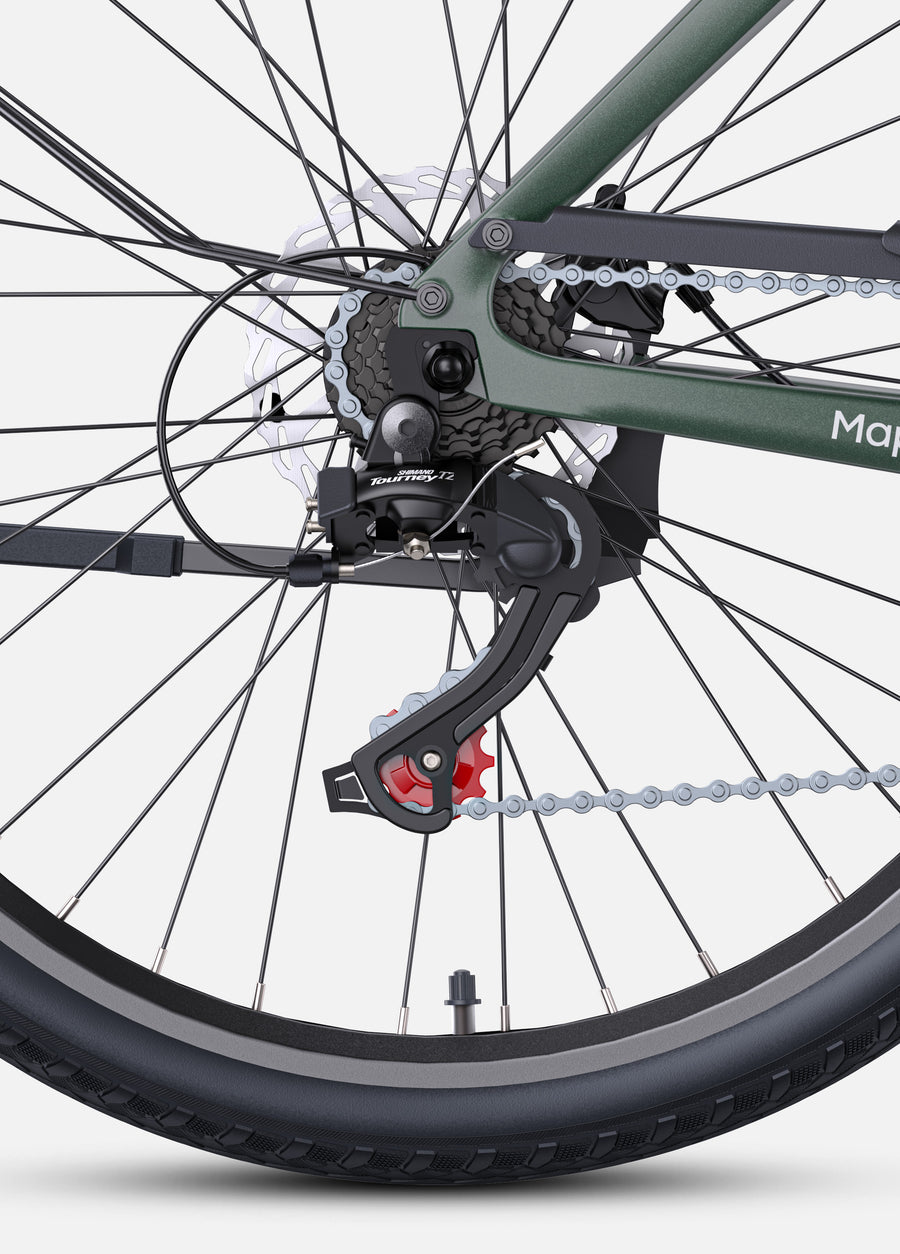

Transmission System: Shimano 7-Speed

Brakes: 160 mm Front & Rear Mechanical Disc Brakes

Battery: 36V 10Ah Samsung Removable Lithium-Ion Battery

Speed: 25 km/h

Mileage: 100 km (PAS 1 Level)

Charging Time: About 5–8 Hours (Depends on battery usage)

Maximum Climbing Degree: 10°

Display: LCD Color Display

Bike Weight: 15.6 kg (34.39 lbs)

Gross Weight: 25.4 kg (55.99 lbs)

Unfolded:

Rider Height: 5.25 ft – 6.4 ft

Payload Capacity: 120 kg (264.5 lbs)

Package Dimensions (L × W × H): 148.4 × 22.5 × 73 cm

A – Wheelbase: 110.5 cm

B – Total Length: 181 cm

C – Reach: 44 cm

D – Standover Height: 75.5 cm

E – Minimum Saddle Height: 82.5 cm

F – Maximum Saddle Height: 95 cm

G – Minimum Handlebar Height: 105 cm

H – Maximum Handlebar Height: 112 cm

N1 Air E-bike *1

Battery 36V 10Ah SAMSUNG Lithium-Ion*1

48V 2Ah Battery Charger *1

Pedals *2

Front & Rear Fenders *1

Bike Kickstand *1

Assembly Tools *1

User Manual *1
