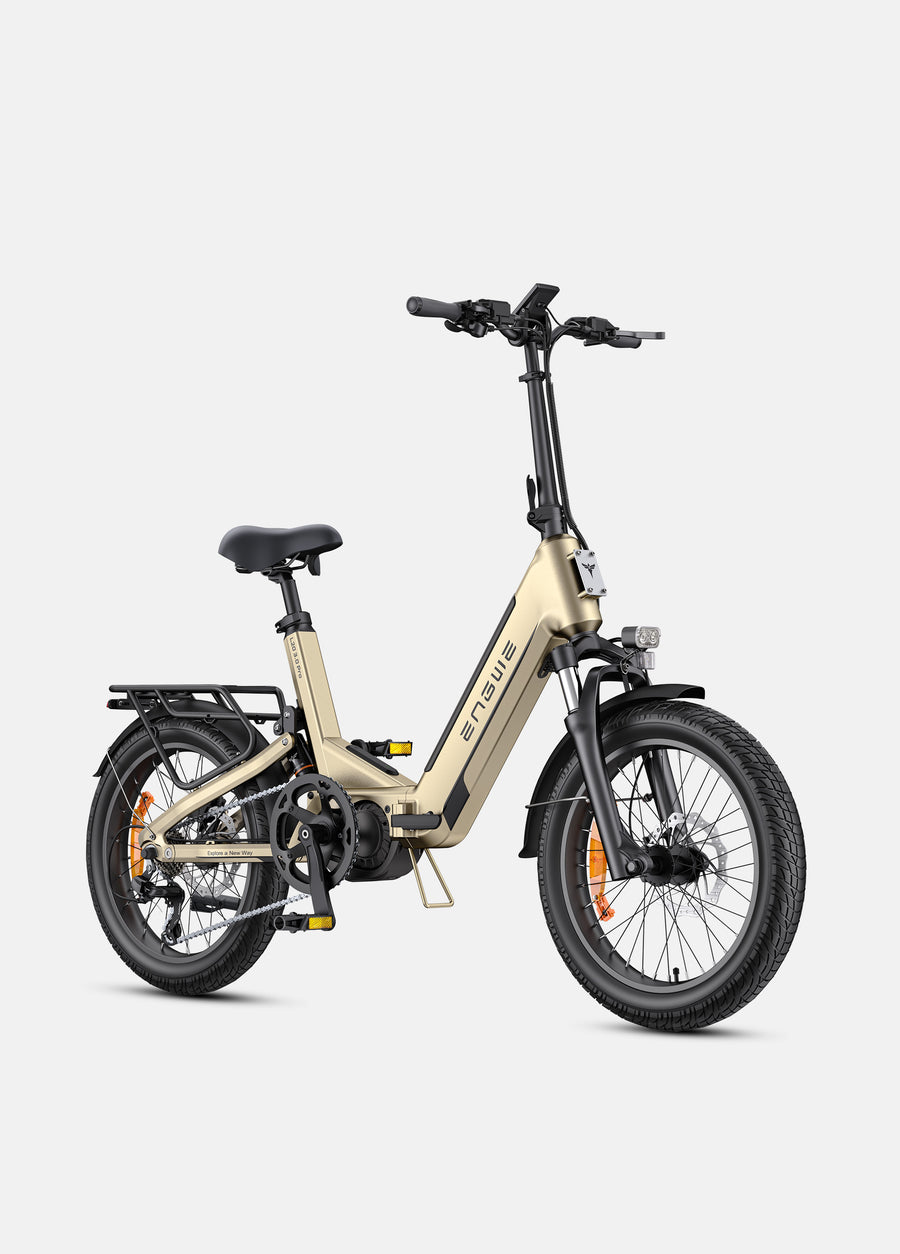

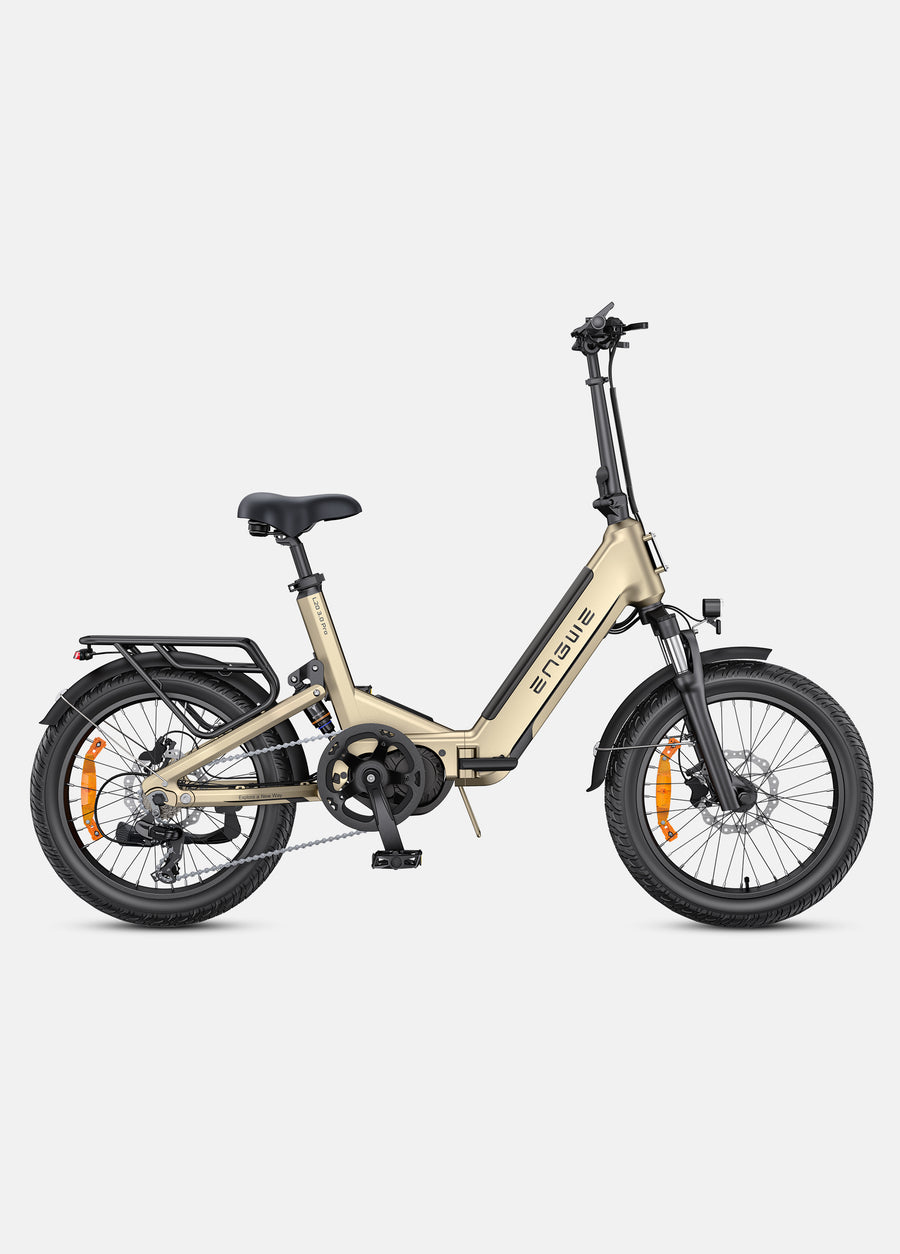

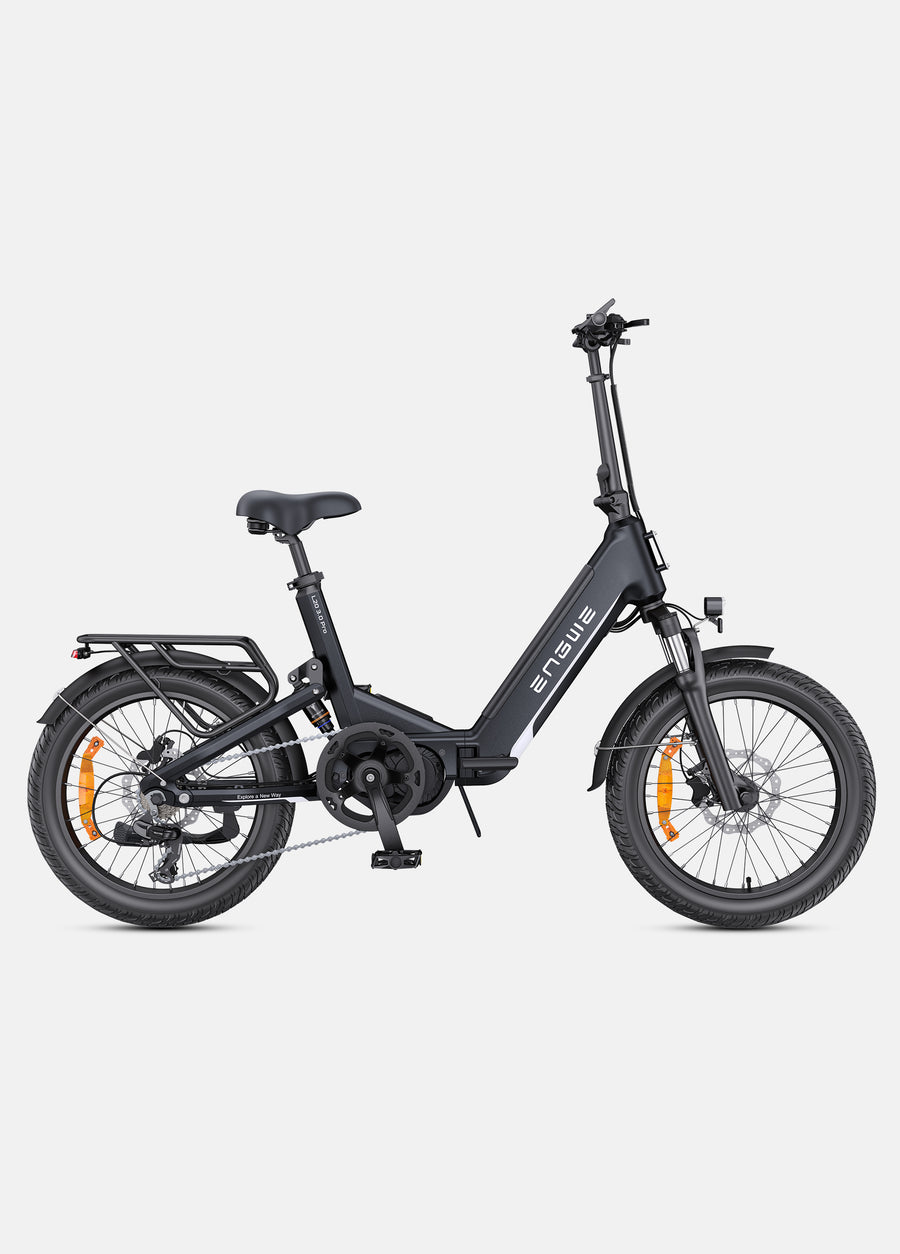

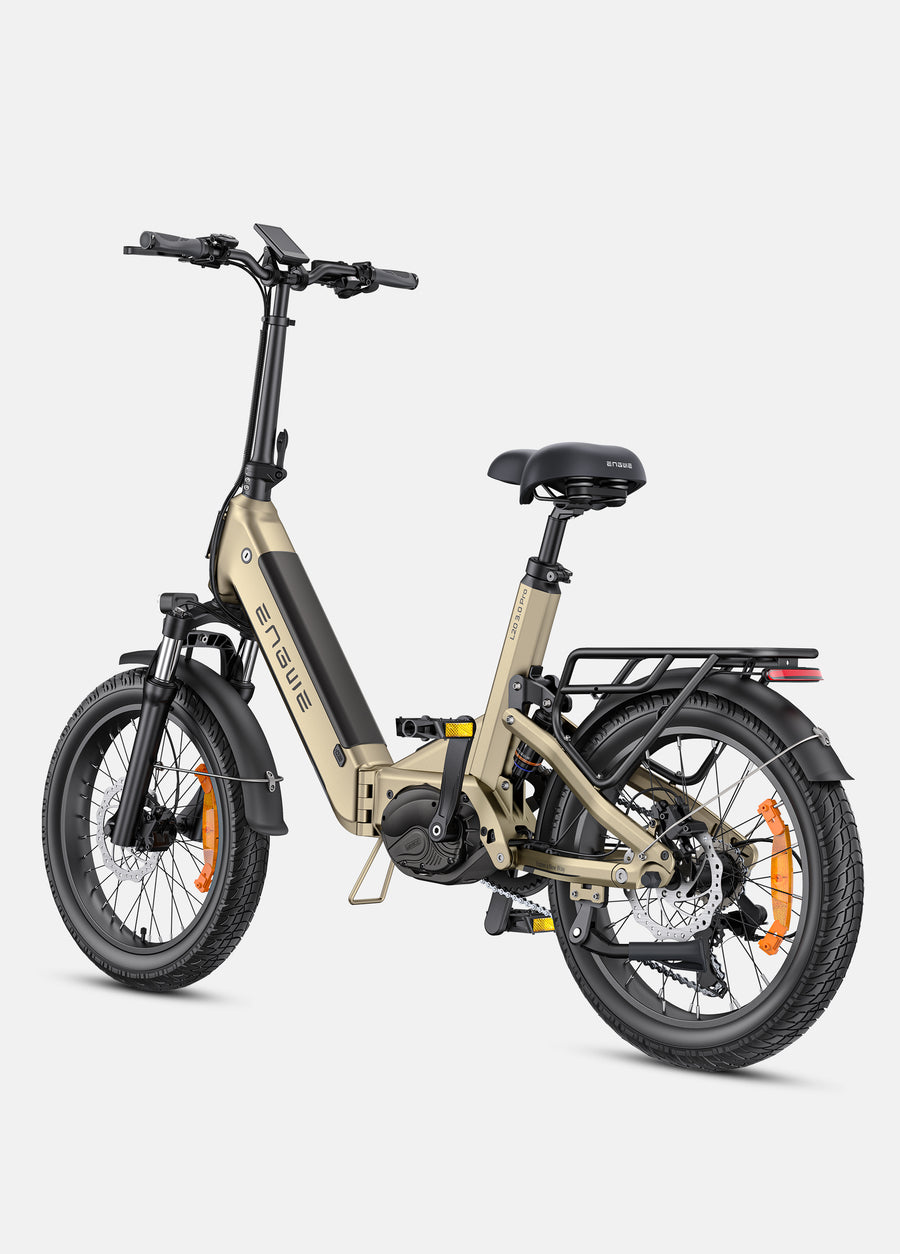

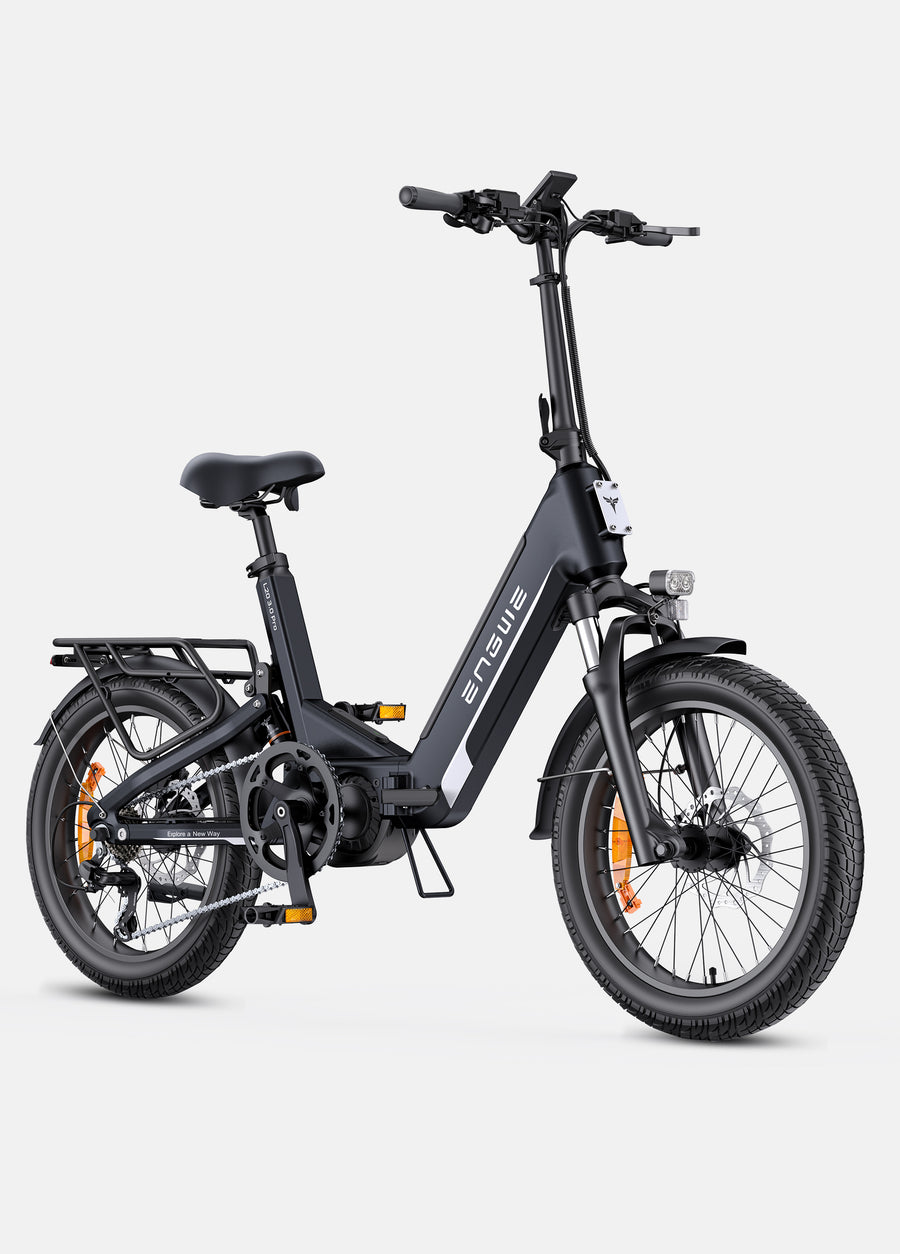

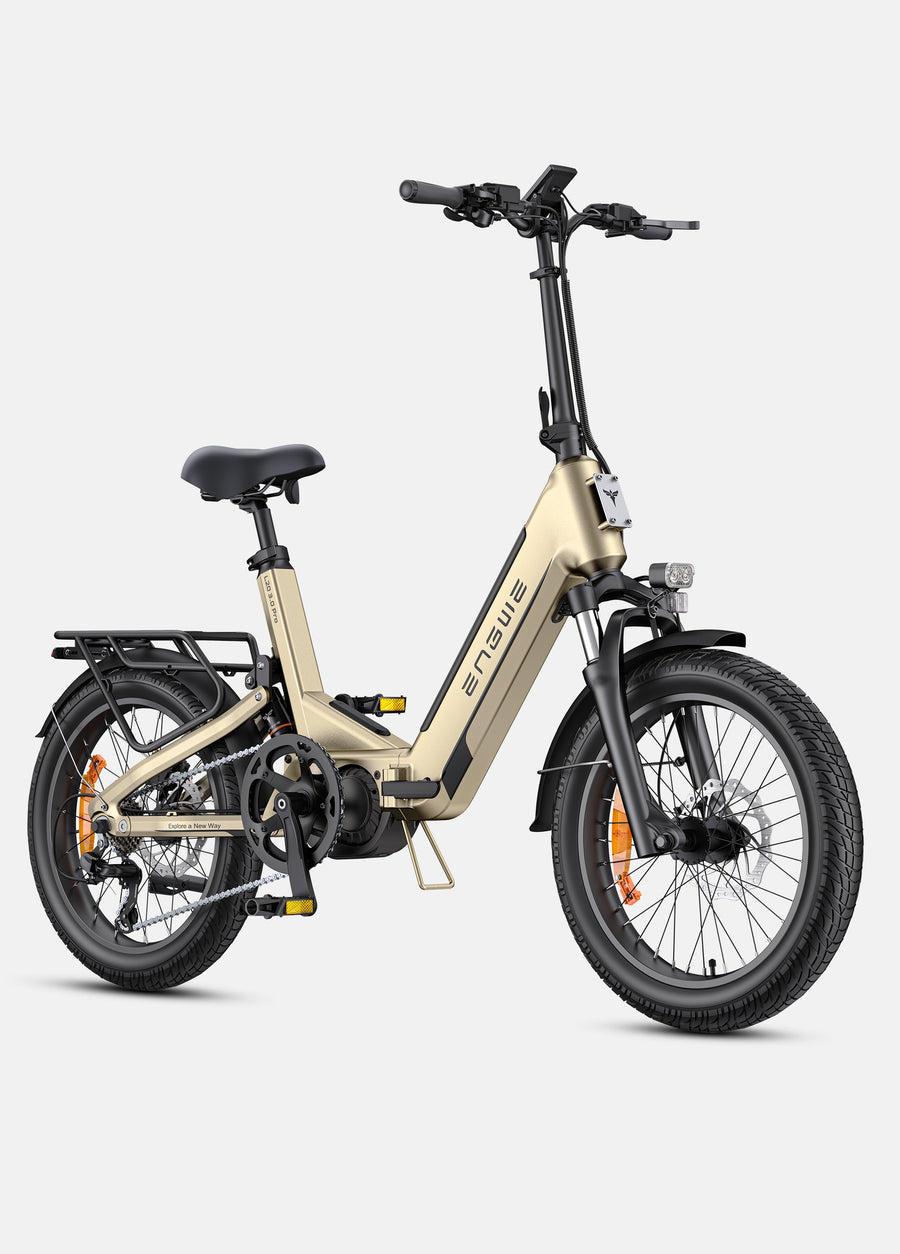

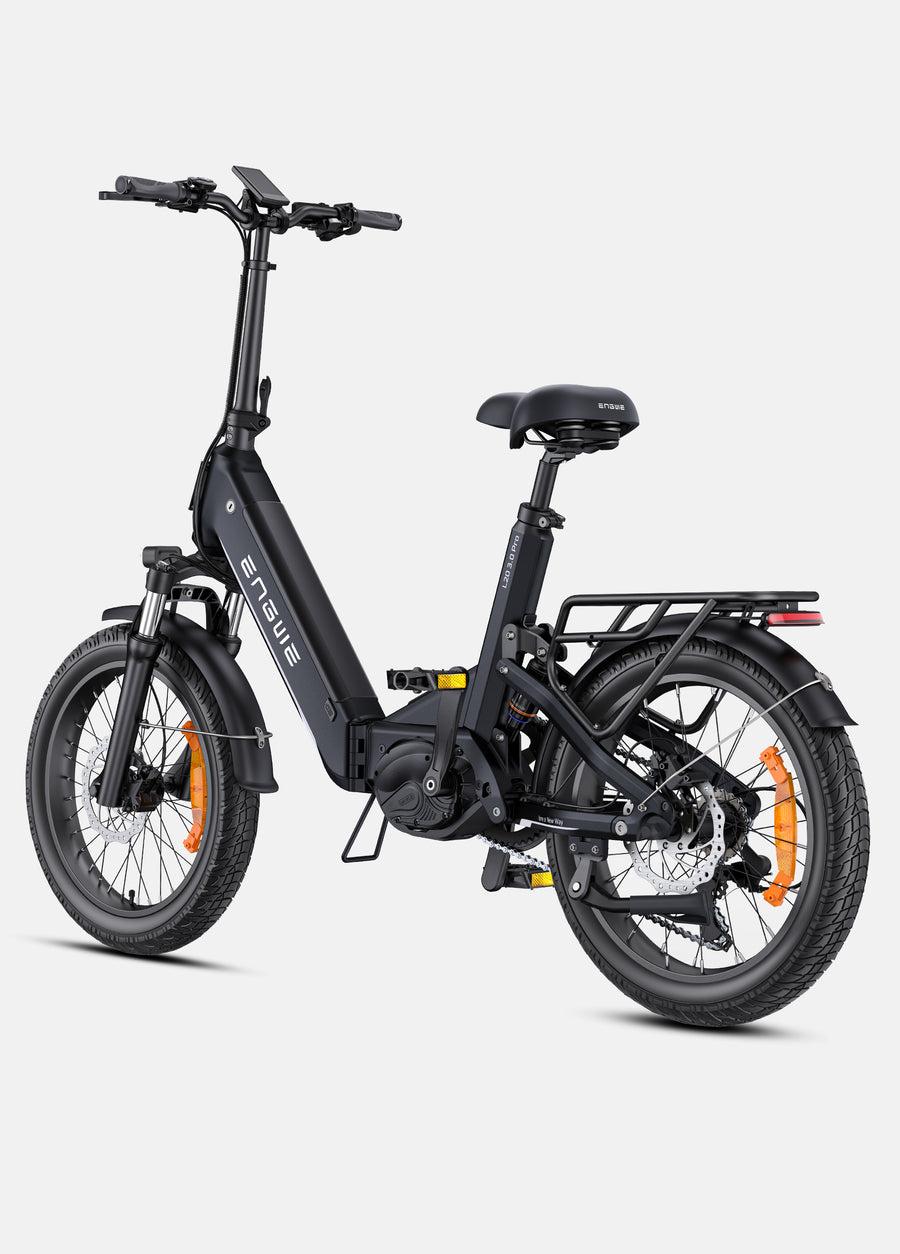

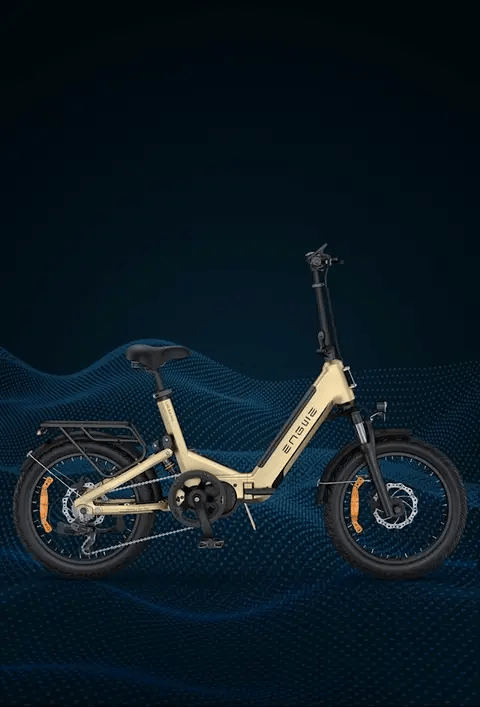

L20 3.0 Pro 250W 100Nm Mid-drive Motor Full Suspension Compact E-bike

Here’s the L20 3.0 Pro specs reformatted to match your consistent style:

General Info

Model: L20 3.0 Pro

Max Load Capacity: 150 kg (330 lbs)

Ride Height: 5'1" – 6'3" (155 – 190 cm)

Certification: CE (EN15194)

Pedal Assist: 5 Levels

Fold: Yes

Lab Tested Range: 160 km (Fully Charged)

Real-World Range: 140 km (PAS 1) / 110 km (PAS 3) / 96 km (PAS 5)

Waterproof Ratings:

Frameset

Frame Material: 6061 Aluminum Alloy, Internal Battery, Step-Through Design

Frame Style: Compact, Full Suspension

Fork: Hydraulic, Adjustable Lockout, One-Piece Die-Cast Aluminum

Rear Suspension: 30 mm Travel

Wheel Set

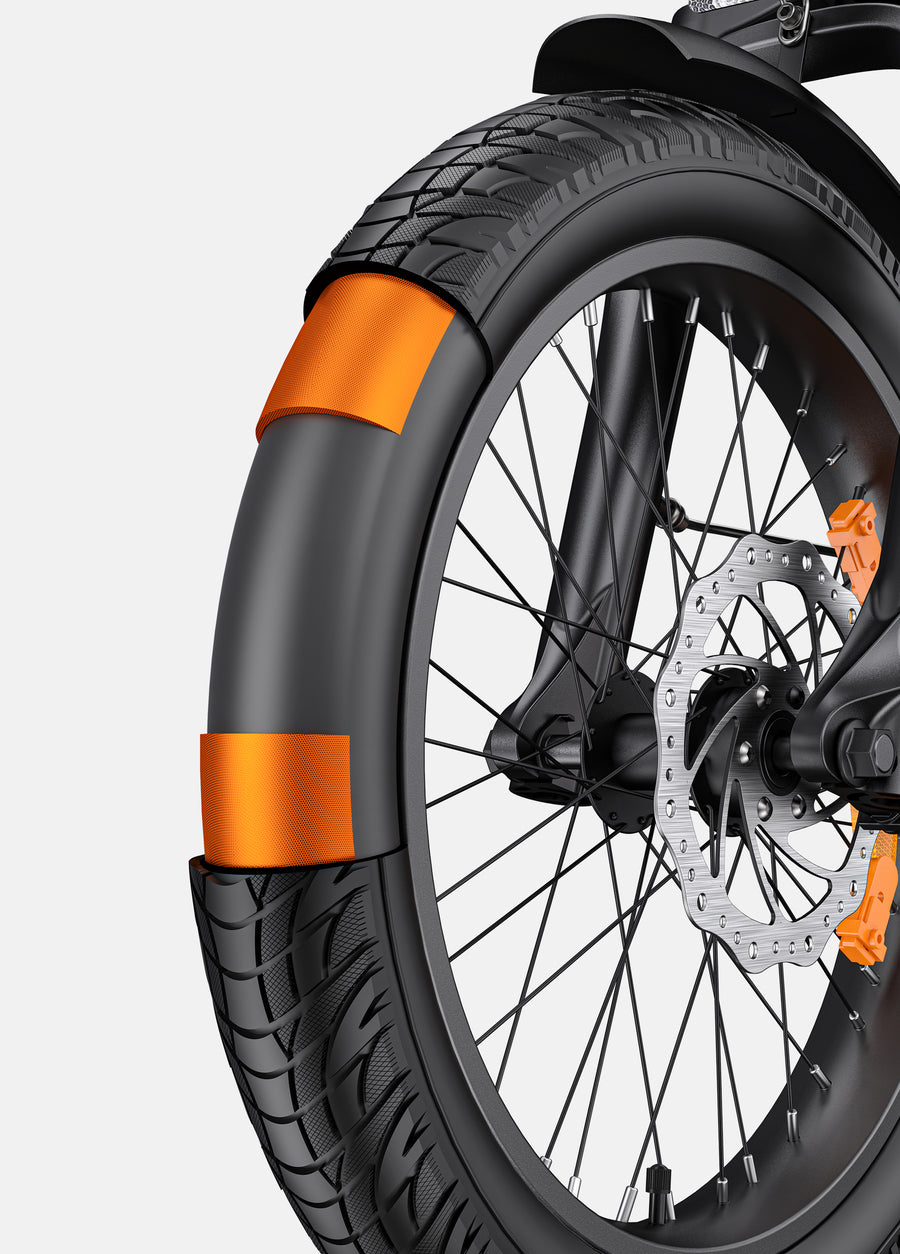

Tires: 20" × 3.0" Urban Hybrid Tires

Puncture Protection: 3 mm Anti-Puncture Layer

Wheels: 20-inch, 12-gauge Spokes, 36-hole, Double-Wall Aluminum, Black

E-Bike System

Motor: Mivice X700 Mid-Drive, 48V

Max Torque: 100 Nm

IOT: ENGWE IOT Module with GPS, 4G & Bluetooth

Assist System: Torque Sensor

Battery: 48V 15Ah (720Wh), Samsung 21700 Cells with BMS

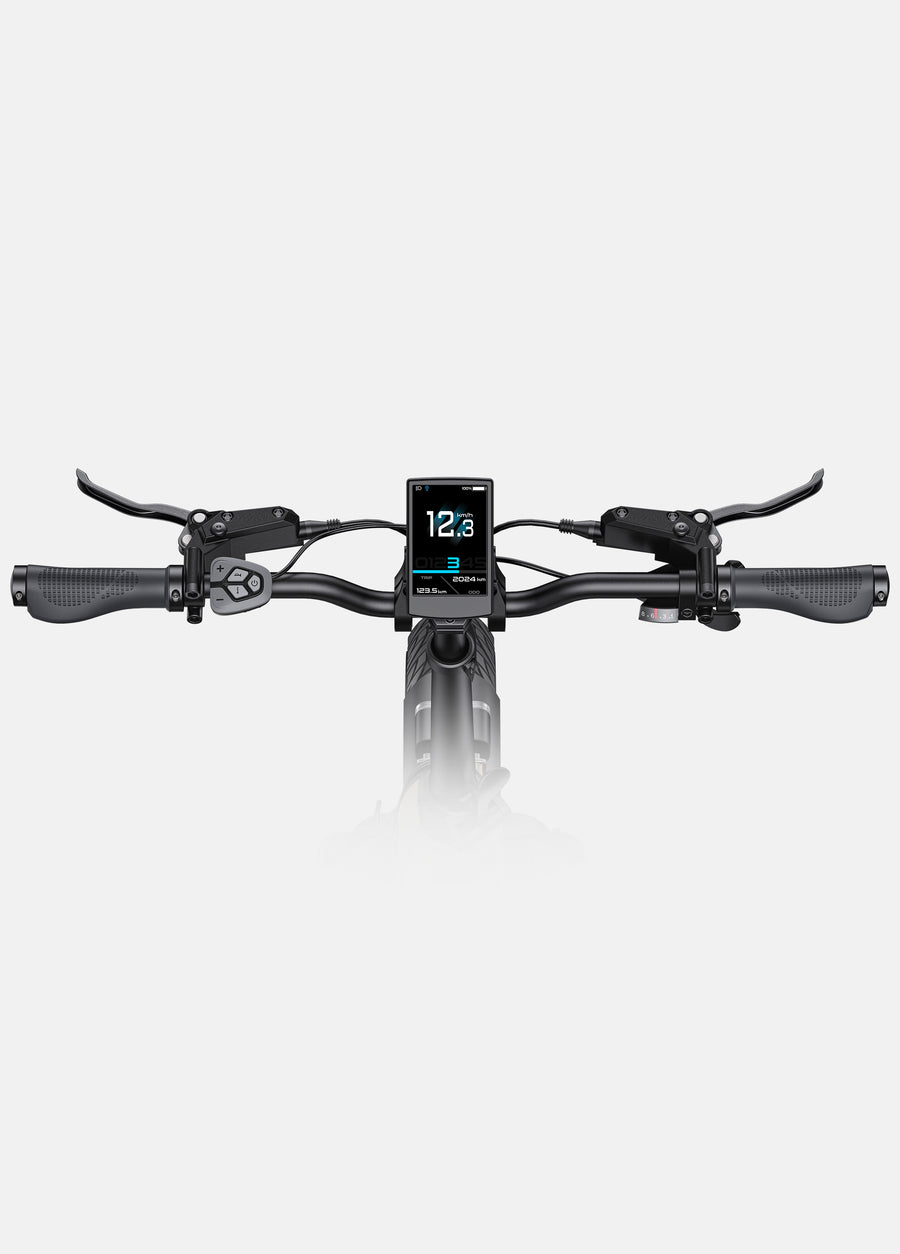

Display: 3.5" LCD Color Display, ENGWE-Designed, Mid-Position

ENGWE App: App Control Available

Charger: 54.6V 8A Output

Front Light: 30 Lux with Integrated E-Horn

Rear Light: Automatically Brightens When Braking or Shaking

Brakes

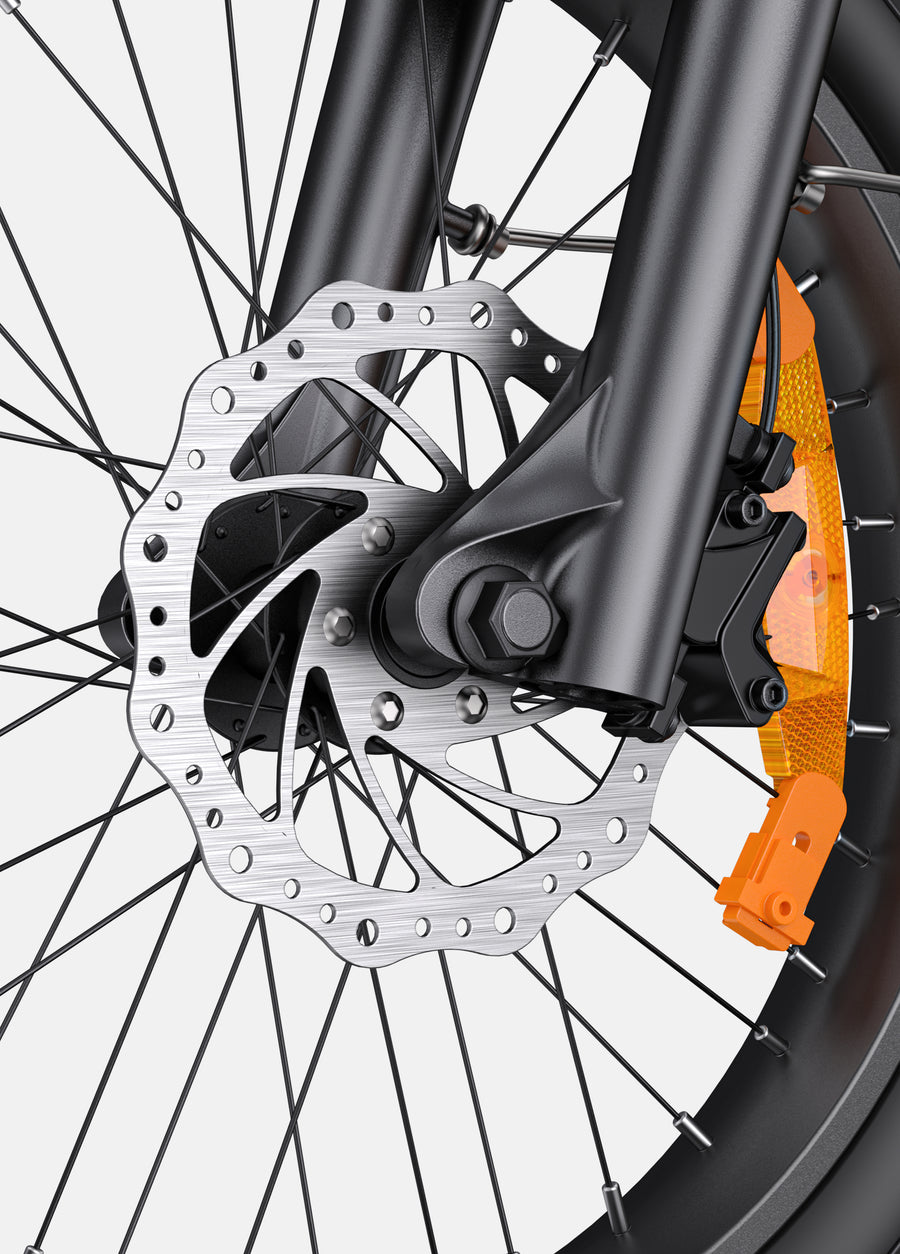

Brake Type: Hydraulic, Dual-Piston

Disc Rotor: 180 mm Front & Rear

Drivetrain

Chain: KMC E8S Anti-Rust, 112 Links

Chainring: 48T

Crank: 170 mm

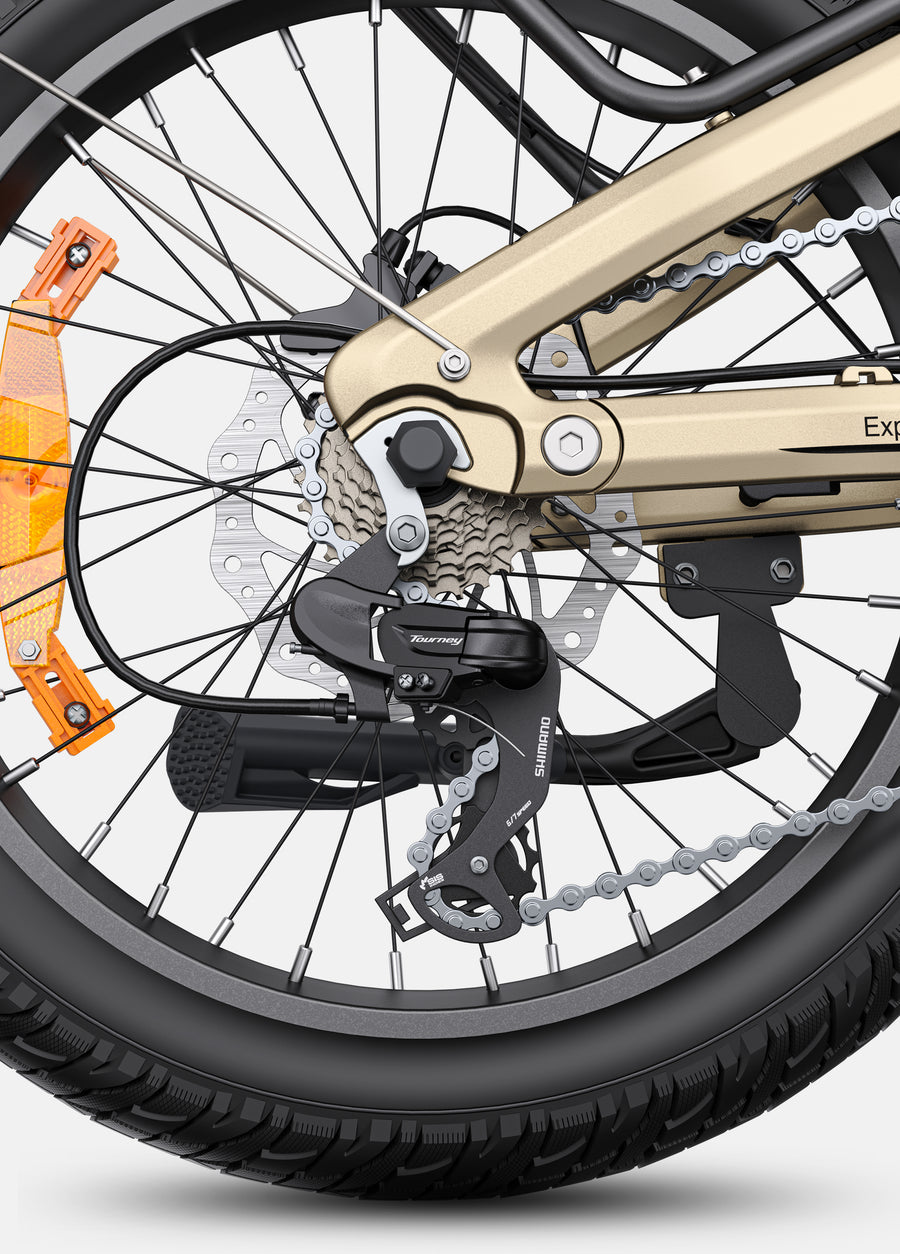

Rear Derailleur: Shimano Tourney RD-TY300, 7-Speed

Shifter: Shimano SL-M315-7R

Cassette: 7-Speed, 14T–28T

Pedals: Boron Steel, Non-Foldable

Cockpit

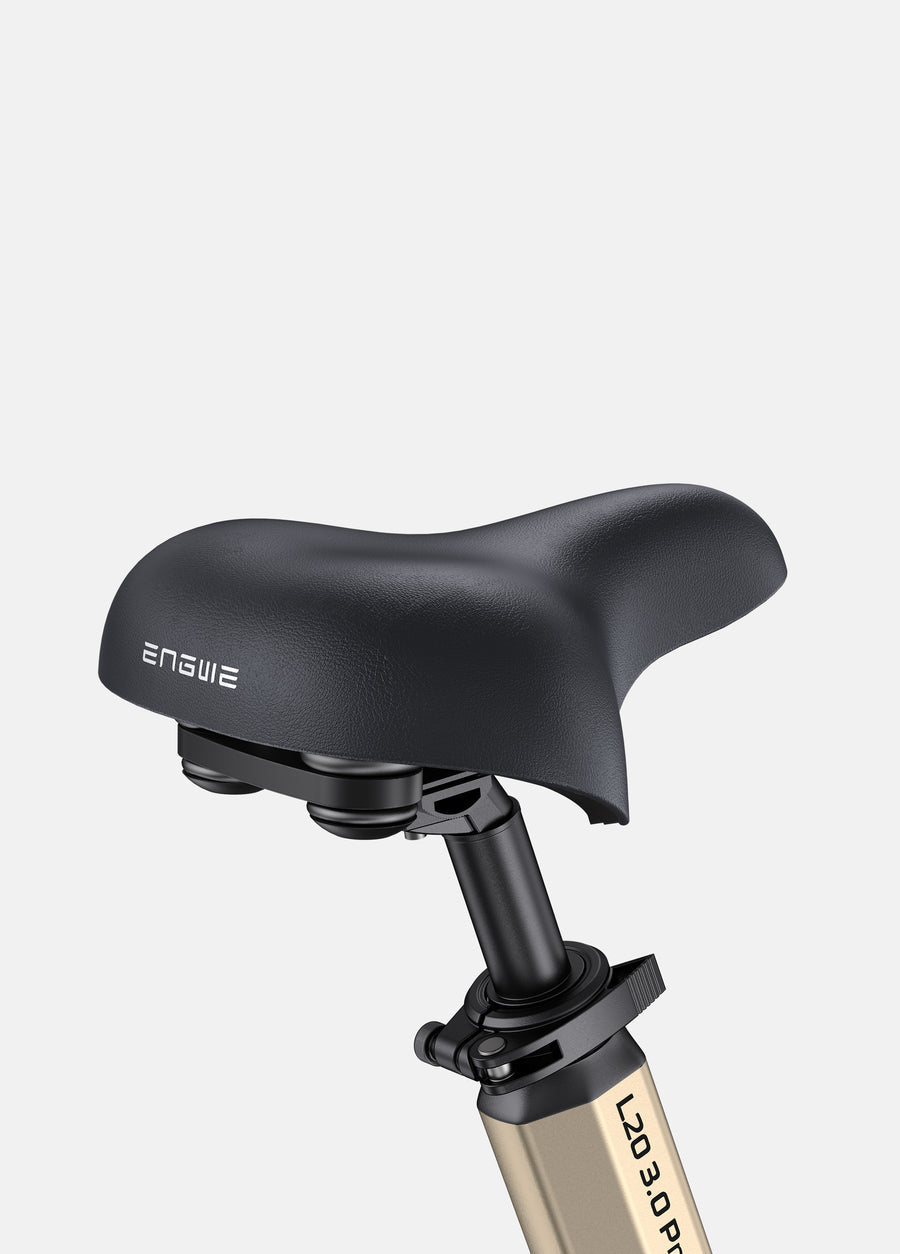

Saddle: ENGWE Soft Saddle

Seat Post: 10-Level Adjustable

Handlebars: 680 mm Width

Stem: Foldable

Seat Clamp: Quick-Release

Here’s the unfolded and folded dimensions formatted in your preferred layout:

Unfolded:

Ride Height: 5'1" – 6'3" (155 – 190 cm)

Max Load Capacity: 150 kg (330 lbs)

Package Dimensions: 144 × 27 × 64 cm

A – Handlebar Height: 110.2 cm

B – Total Length: 172.0 cm

C – Reach: 51.2 cm

D – Standover Height: 38.0 cm

E – Wheelbase: 116.5 cm

F – Minimum Saddle Height: 82.0 cm

G – Maximum Saddle Height: 102.0 cm

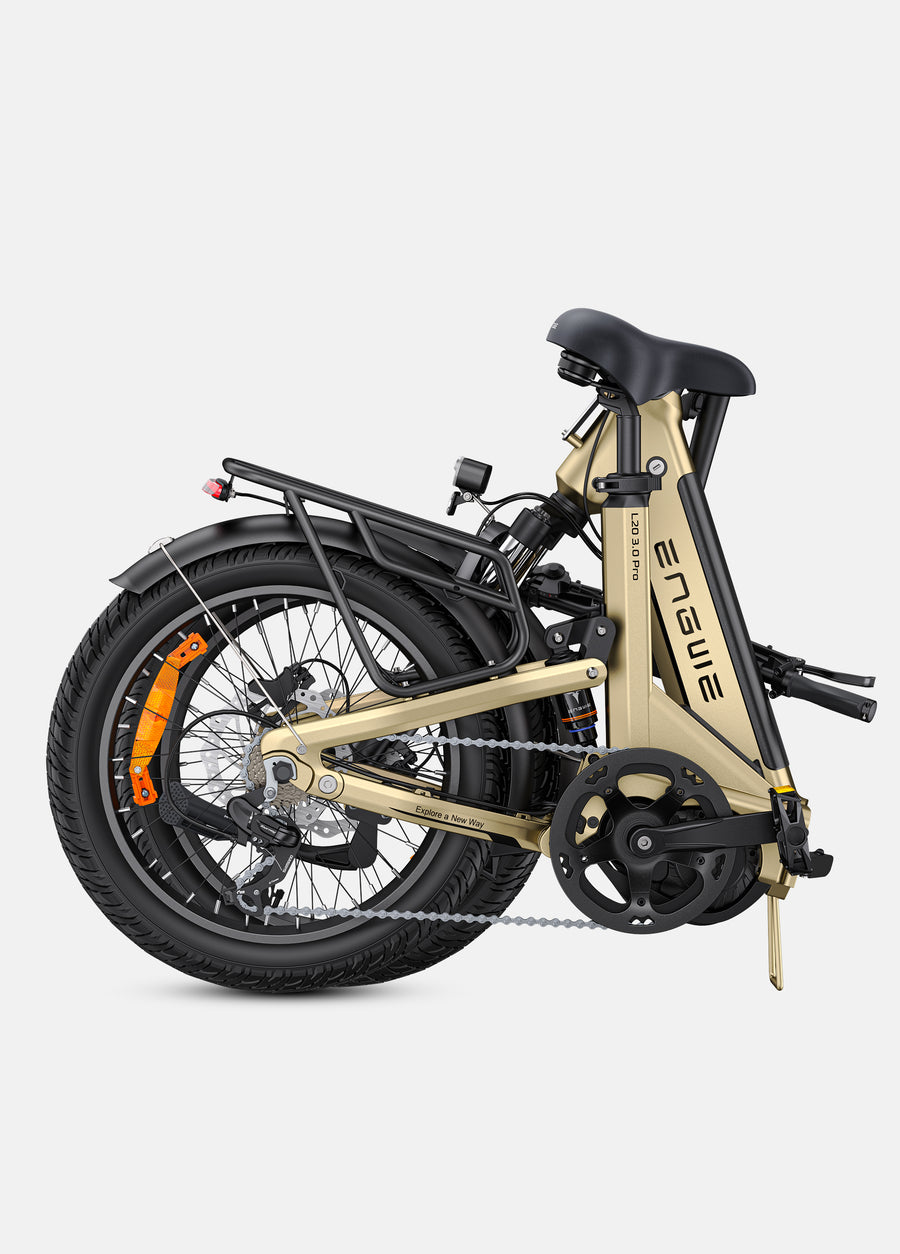

Folded:

Folded Size: 102 × 53 × 78 cm

A – Height: 78 cm

B – Length: 102 cm

C – Width: 53 cm

L20 3.0 Pro E-Bike *1

Battery 48V 15Ah Samsung Lithium-Ion*1

Charger 54.6V 8A *1

Pedals *2

Front & Rear Fenders *1

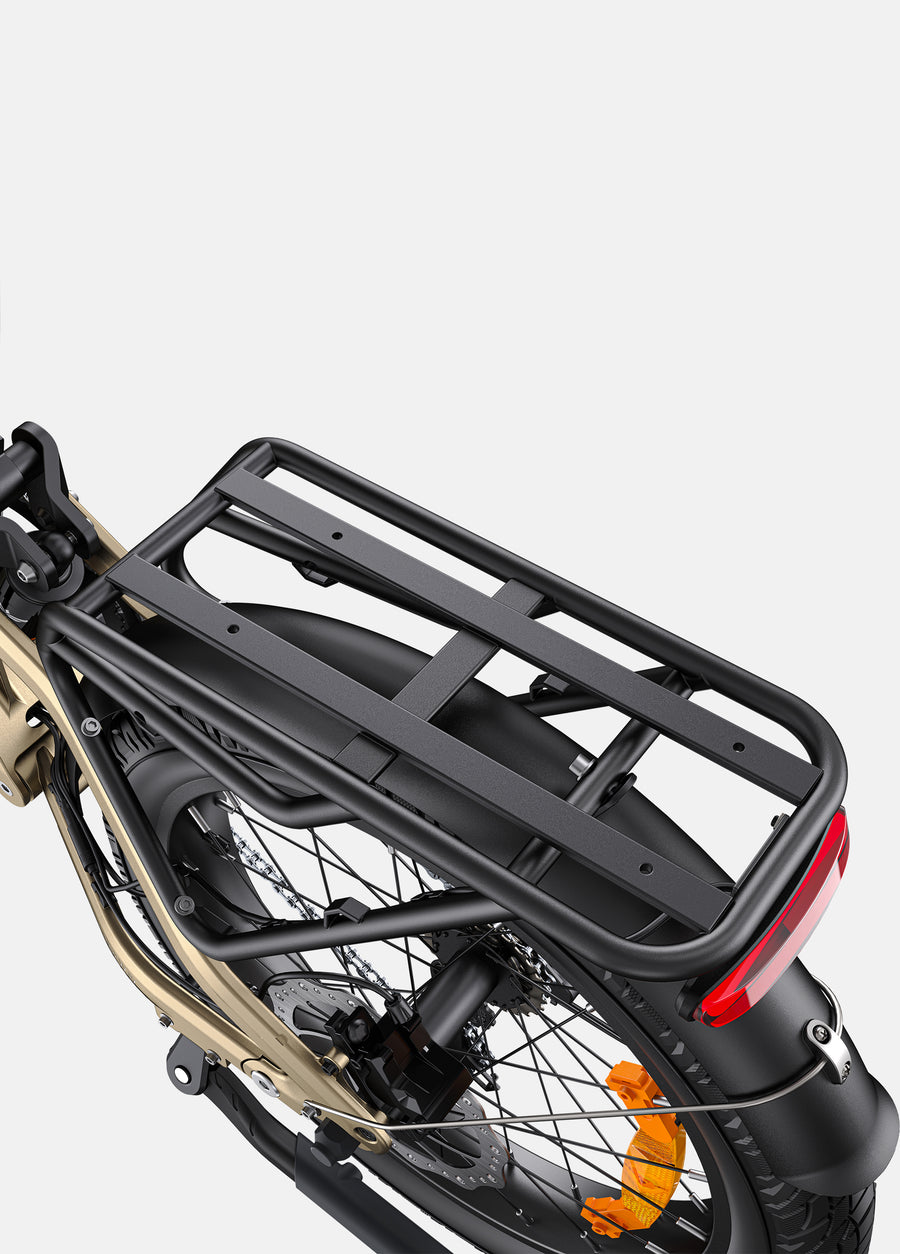

Rear Rack *1

Bike Kickstand *1

Assembly Tools *1

User Manual *1
