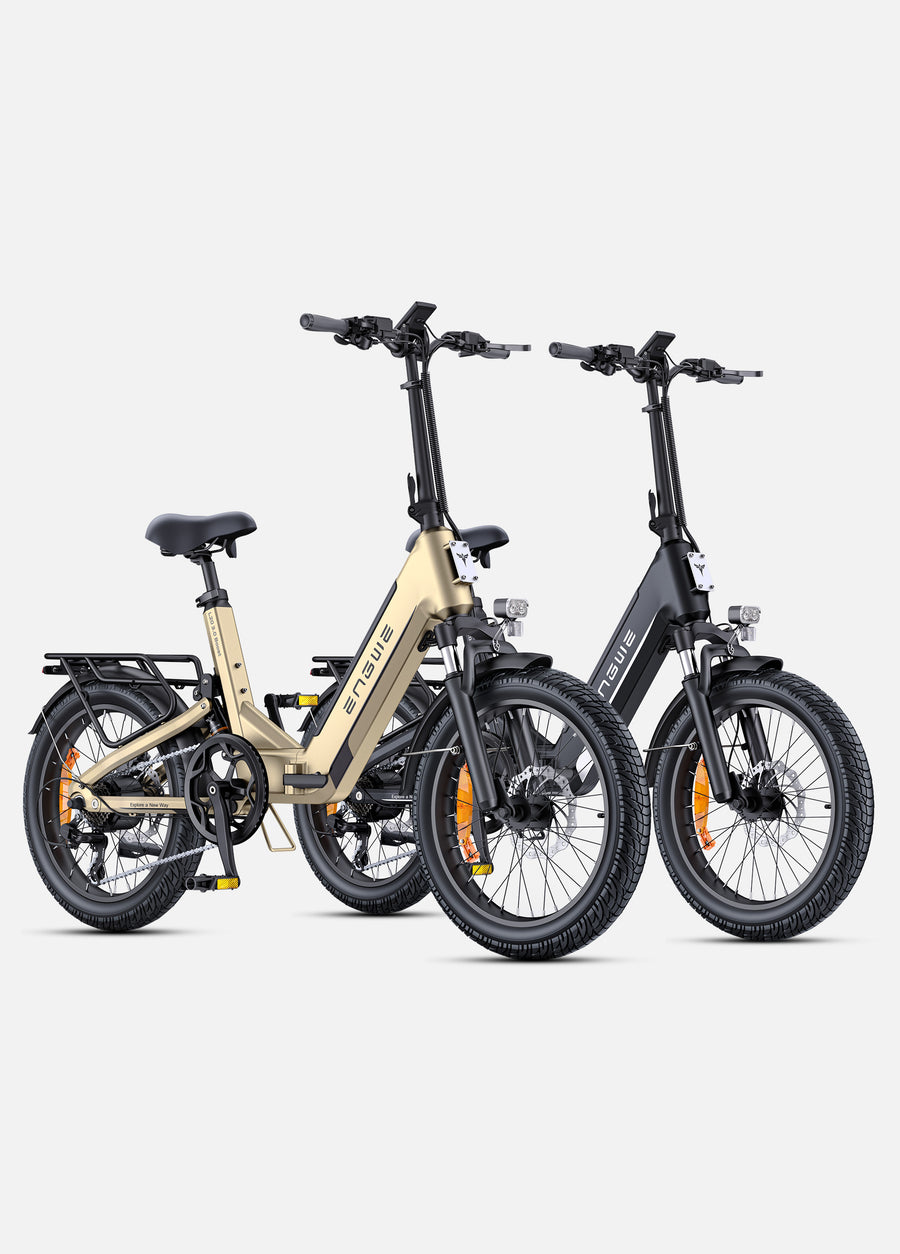

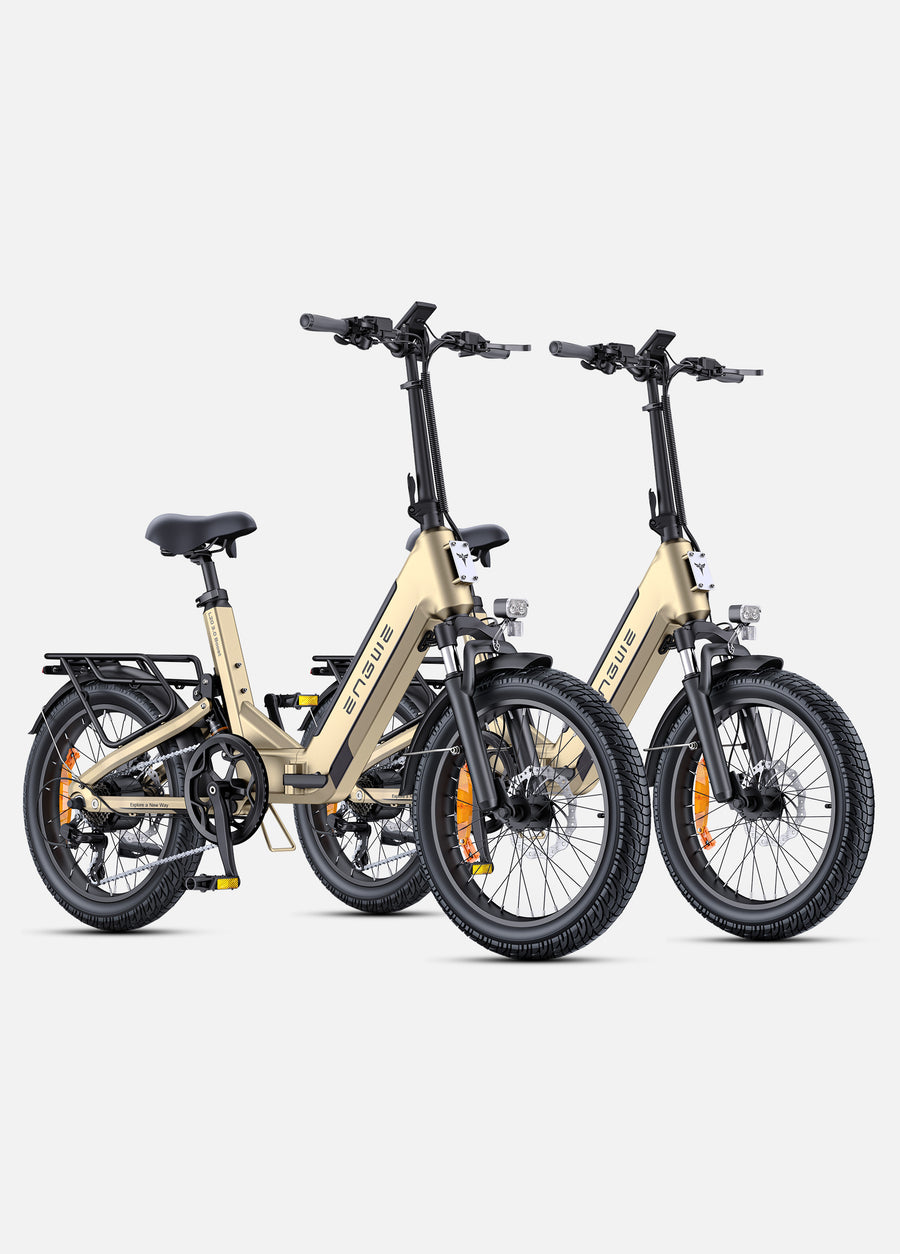

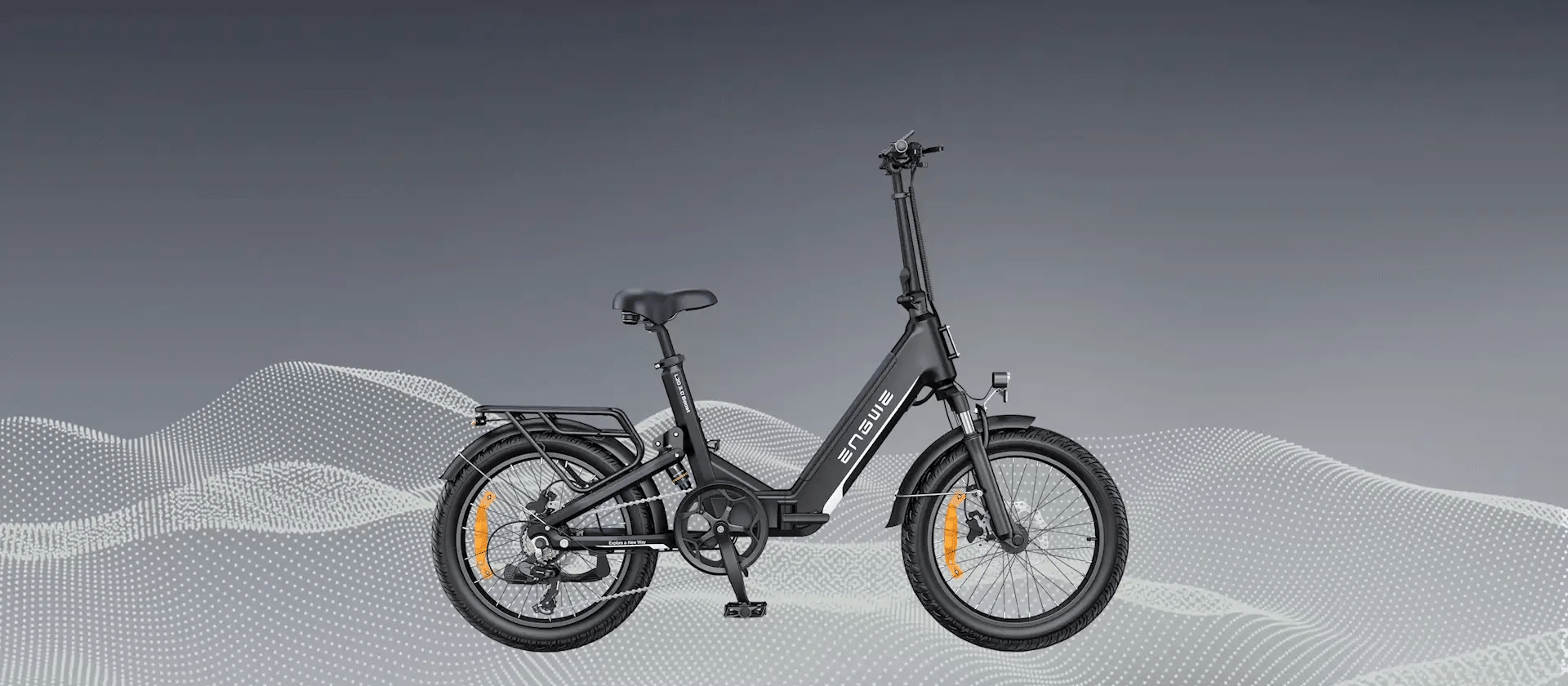

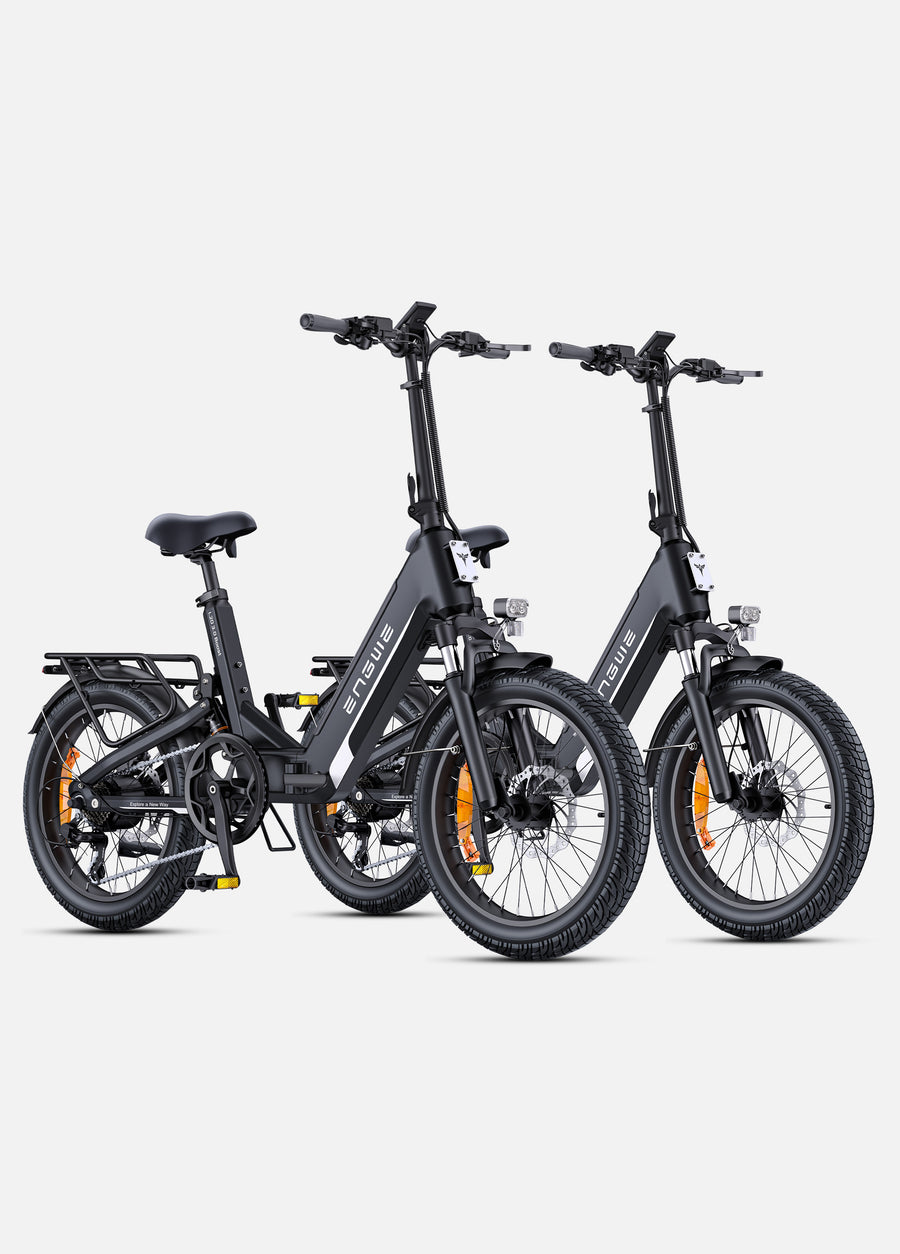

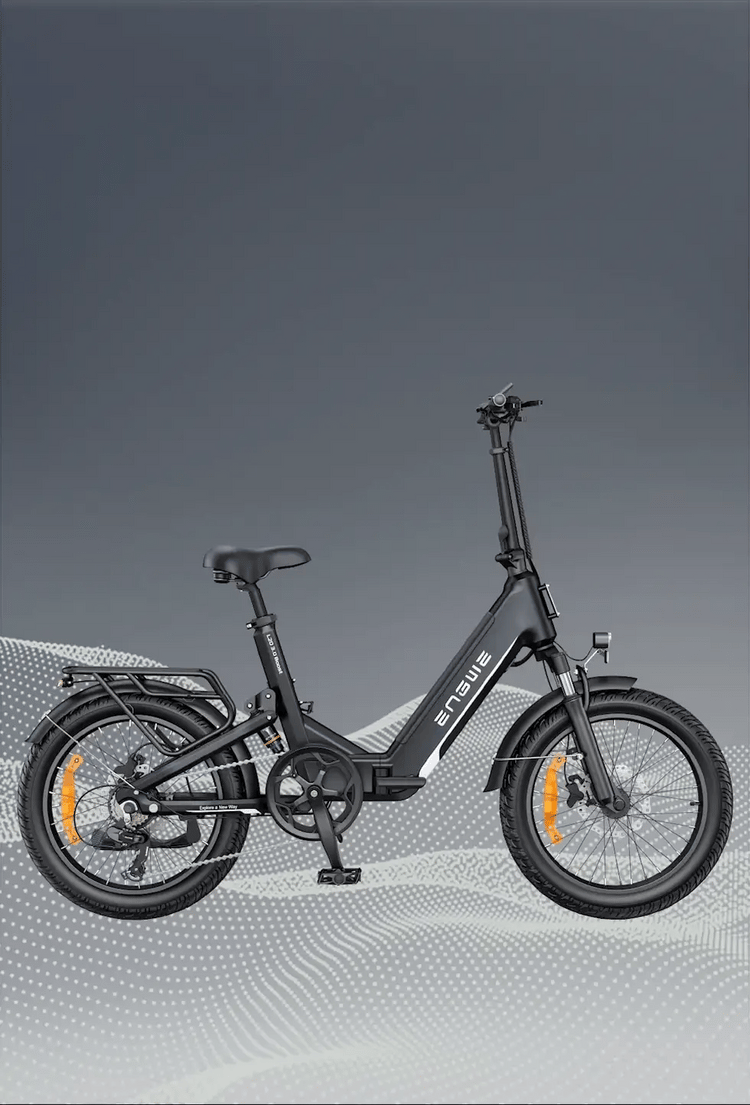

L20 3.0 Boost Combo 250W 75Nm Boost Power Full Suspension Compact E-bike

General Info

Model: L20 3.0 Boost

Max Load Capacity: 150 kg (330 lbs)

Ride Height: 5'1" - 6'3" (155 cm - 190 cm)

Certification: CE (EN15194)

Pedal Assist: 5 Levels

Fold: Yes

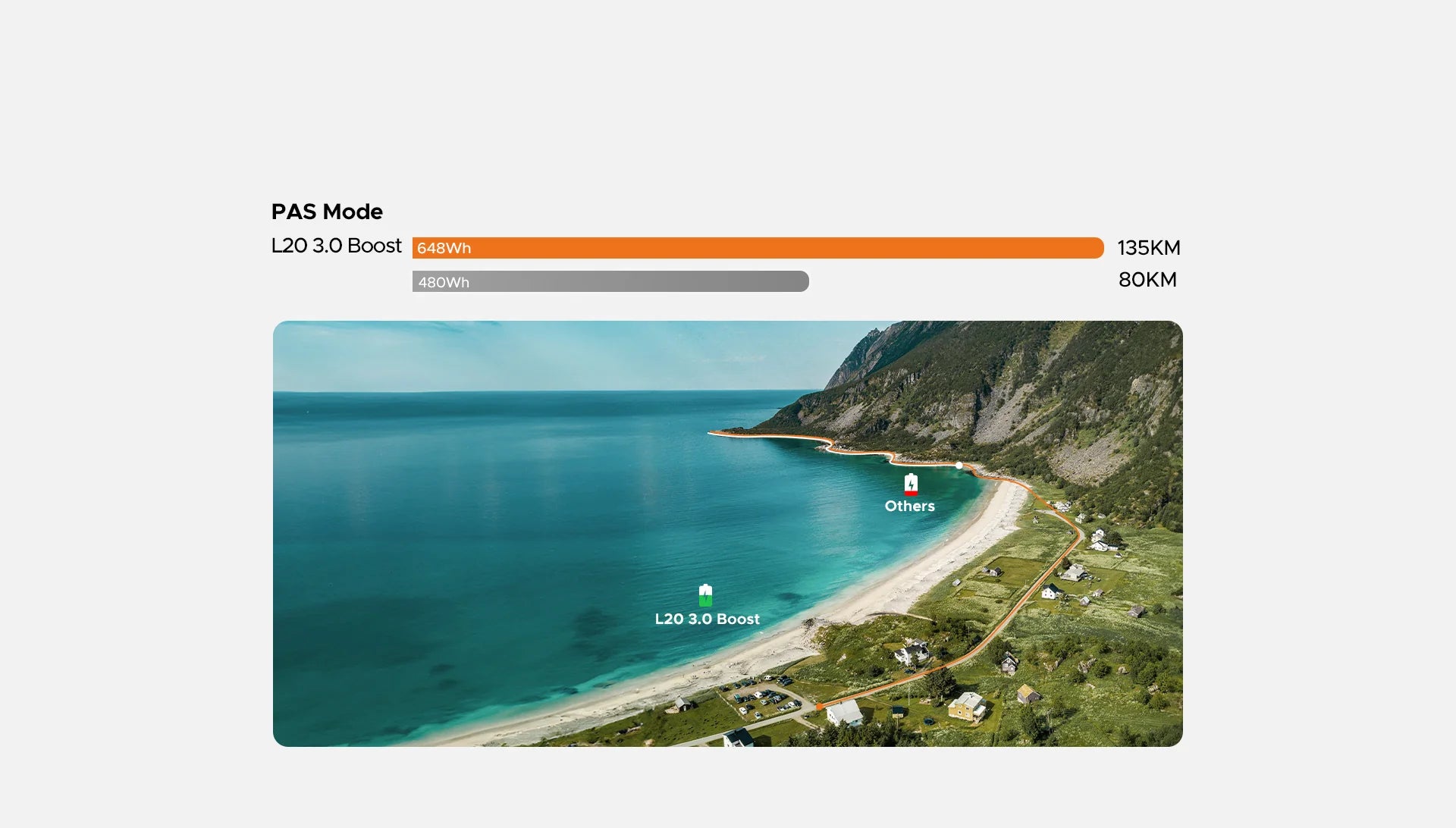

Lab Tested Range: 135 km (Fully Charged)

Real-World Range: 120 km (PAS 1) / 100 km (PAS 3) / 85 km (PAS 5)

Waterproof Ratings: IPX7 (Wiring), IPX6 (Display & Lights), IPX5 (Motor & Controller), IPX4 (Battery Box)

Terrain: Tarmac Roads & Bicycle Routes, Gravel-Paved Paths, Sandy Beaches & Grass, Country Roads & Paved Trails

Bike Weight: 33.2 kg (73.2 lbs)

Gross Weight: Approx. 42 kg (92.6 lbs)

Frameset

Frame Material: 6061 Aluminum Alloy, Internal Battery, Step-Through Design

Frame Style: Compact, Full Suspension

Fork: Hydraulic, Adjustable Lockout, Aluminum & Iron

Rear Suspension: 30 mm Travel

Wheel Set

Tires: 20" × 3.0" Urban Hybrid Tires

Puncture Protection: 3 mm Anti-Puncture Layer

Wheels: 20-inch, 12-gauge Spokes, 36-hole, Double-Wall Aluminum, Black

E-Bike System

Motor: 48V Hub Motor

Max Torque: 75 Nm

Assist System: Torque Sensor

Battery: 48V 13.5Ah (648Wh), 21700 Cells, with BMS

Display: 3.5" LED Color Display, ENGWE-Designed, Mid-Position, with Bluetooth

ENGWE App: App Control Available

Charger: 54.6V 8A Output

Front Light: 30 Lux with Integrated E-Horn

Rear Light: Automatically brightens When Braking or Shaking

Brakes

Brake Type: Hydraulic, Dual-Piston

Disc Rotor: 180 mm Front & Rear

Drivetrain

Chain: C8R8 Anti-Rust, 116 Links

Chainring: 52T

Crank: 170 mm

Rear Derailleur: Shimano Tourney RD-TY300, 7-Speed

Shifter: Shimano SL-M315-7R

Cassette: 7-Speed, 14T-28T

Pedals: Boron Steel, Non-Foldable

Cockpit

Saddle: ENGWE Soft Saddle

Seat Post: 10-Level Adjustable

Handlebars: 680 mm Width

Stem: Foldable

Seat Clamp: Quick-Release

Unfolded:

Ride Height: 5'1" – 6'3" (155 – 190 cm)

Max Load Capacity: 150 kg (330 lbs)

Package Dimensions: 140 × 27 × 64 cm

A – Handlebar Height: 110.2 cm

B – Total Length: 168.0 cm

C – Reach: 47.2 cm

D – Standover Height: 38.0 cm

E – Wheelbase: 112.5 cm

F – Minimum Saddle Height: 82.0 cm

G – Maximum Saddle Height: 102.0 cm

Folded:

Folded Size: 100 × 51 × 75 cm

A – Height: 75 cm

B – Length: 100 cm

C – Width: 51 cm

L20 3.0 Boost E-Bike *1

Battery 48V 13.5Ah Lithium-Ion*1

Charger 54.6V 8A *1

Pedals *2

Front & Rear Fenders *1

Rear Rack *1

Bike Kickstand *1

Assembly Tools *1

User Manual *1
