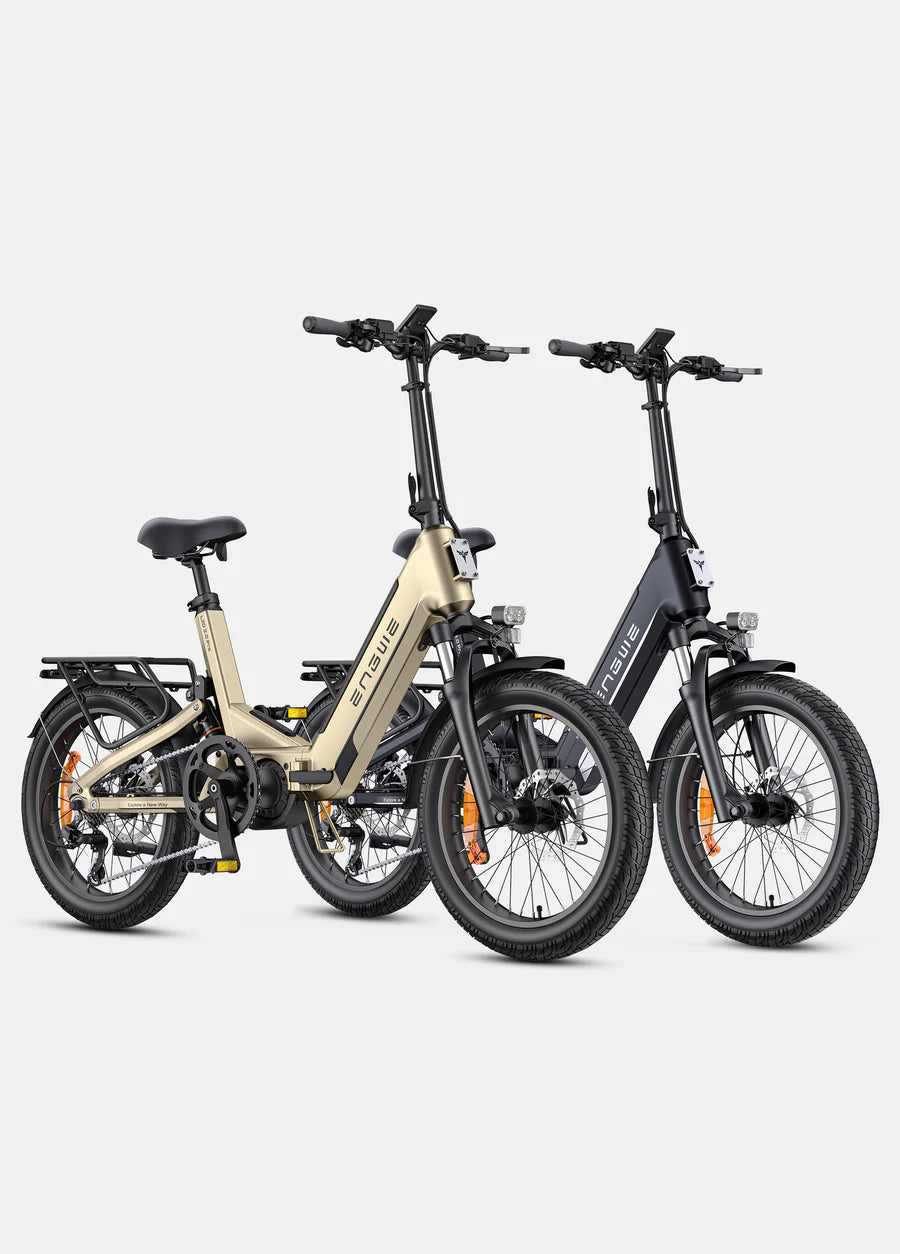

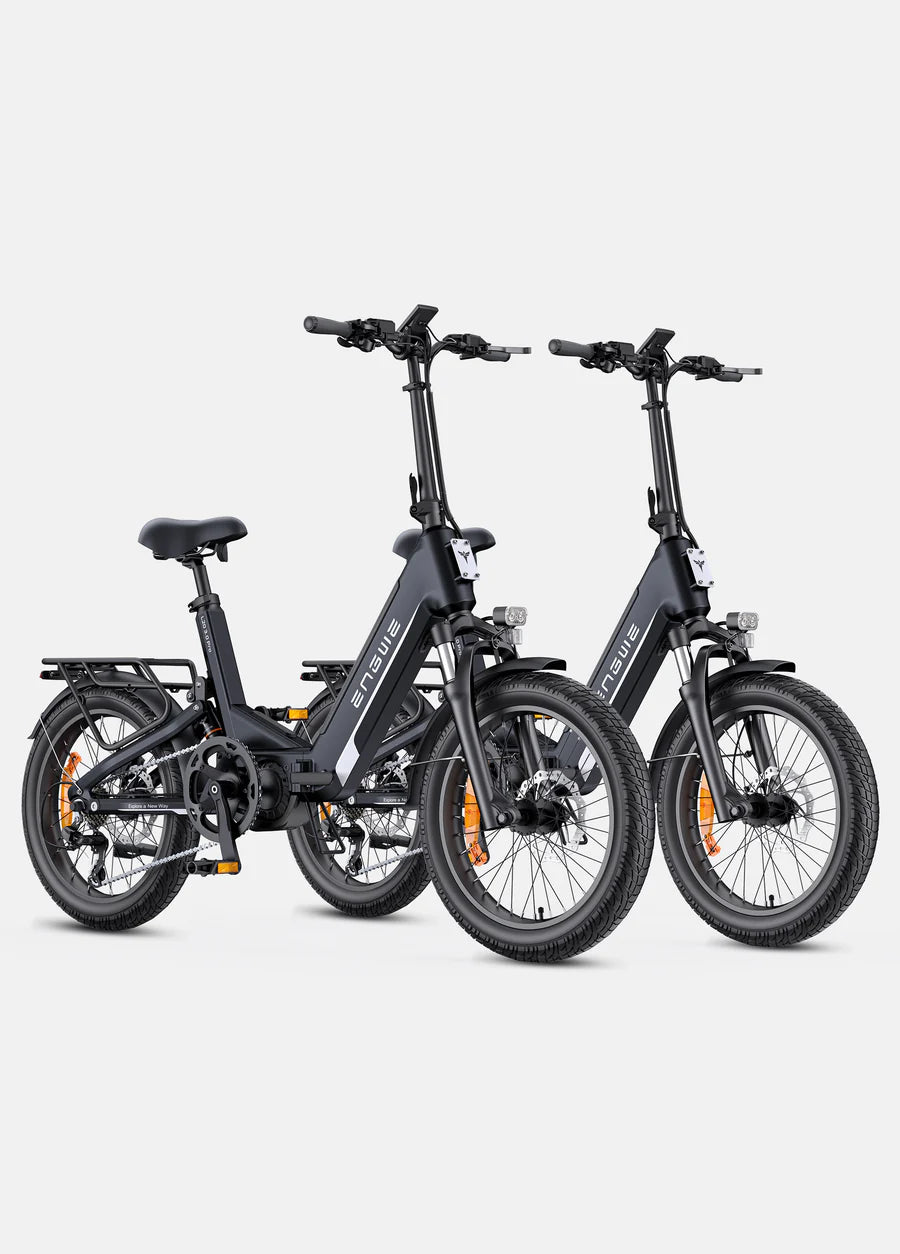

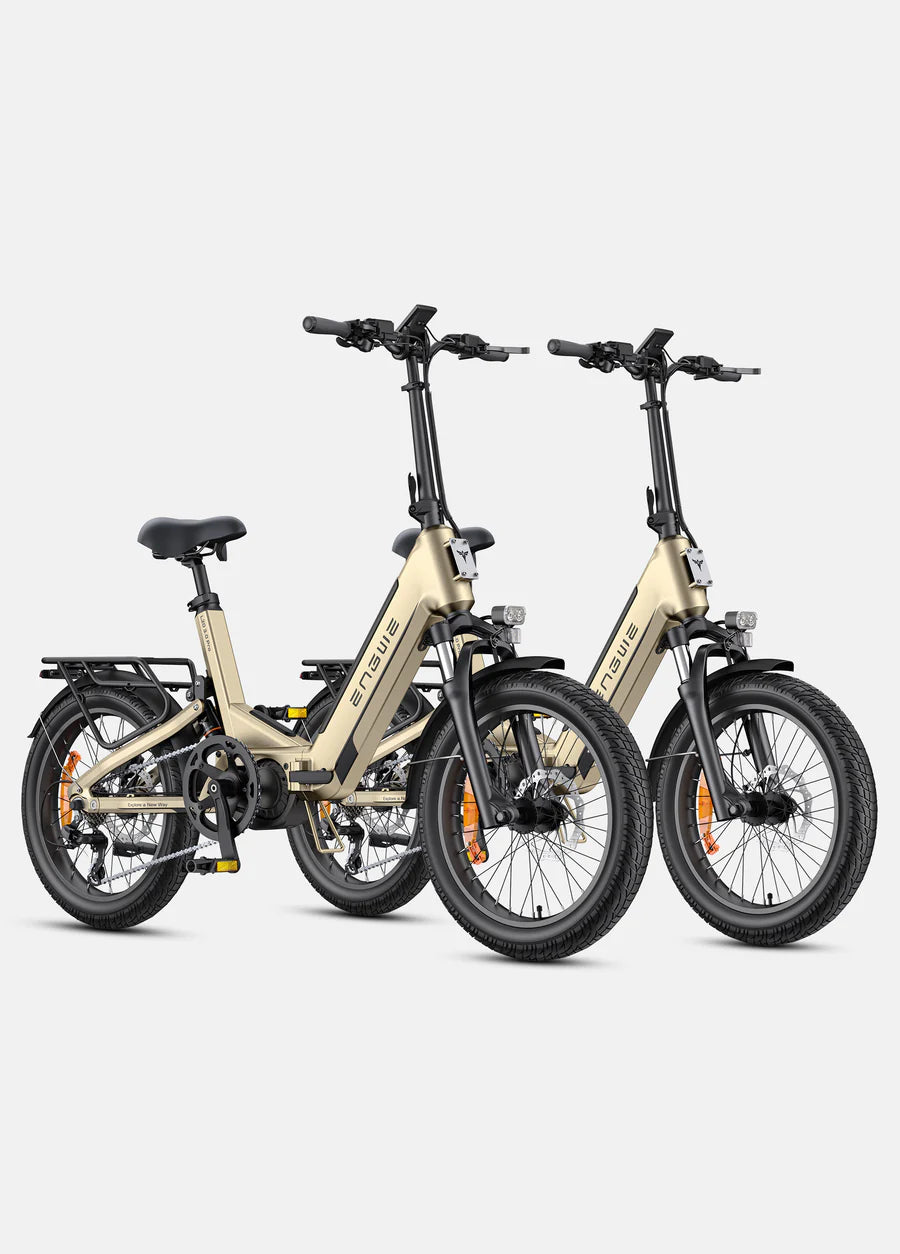

L20 3.0 Pro Combo 250W 100Nm Mid-drive Motor Full Suspension Compact E-bike

General Info

Model: L20 3.0 Pro

Max Load Capacity: 150 kg (330 lbs)

Ride Height: 5'1" - 6'3" (155 cm - 190 cm)

Certification: CE (EN15194)

Pedal Assist: 5 Levels

Fold: Yes

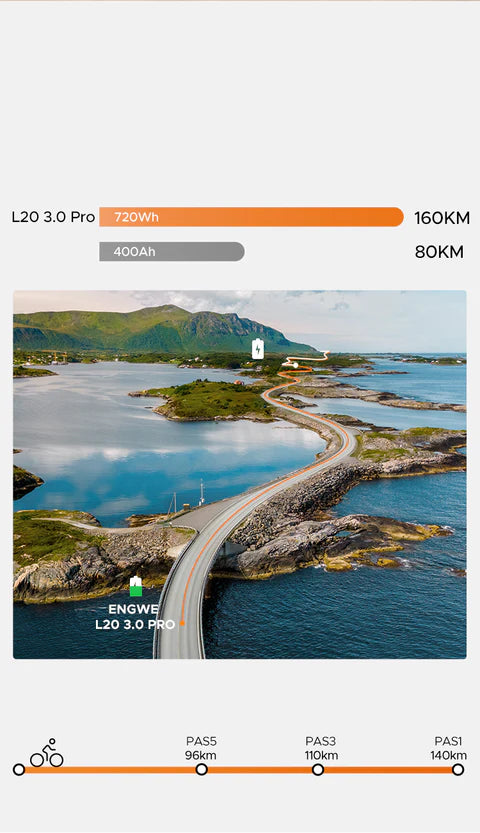

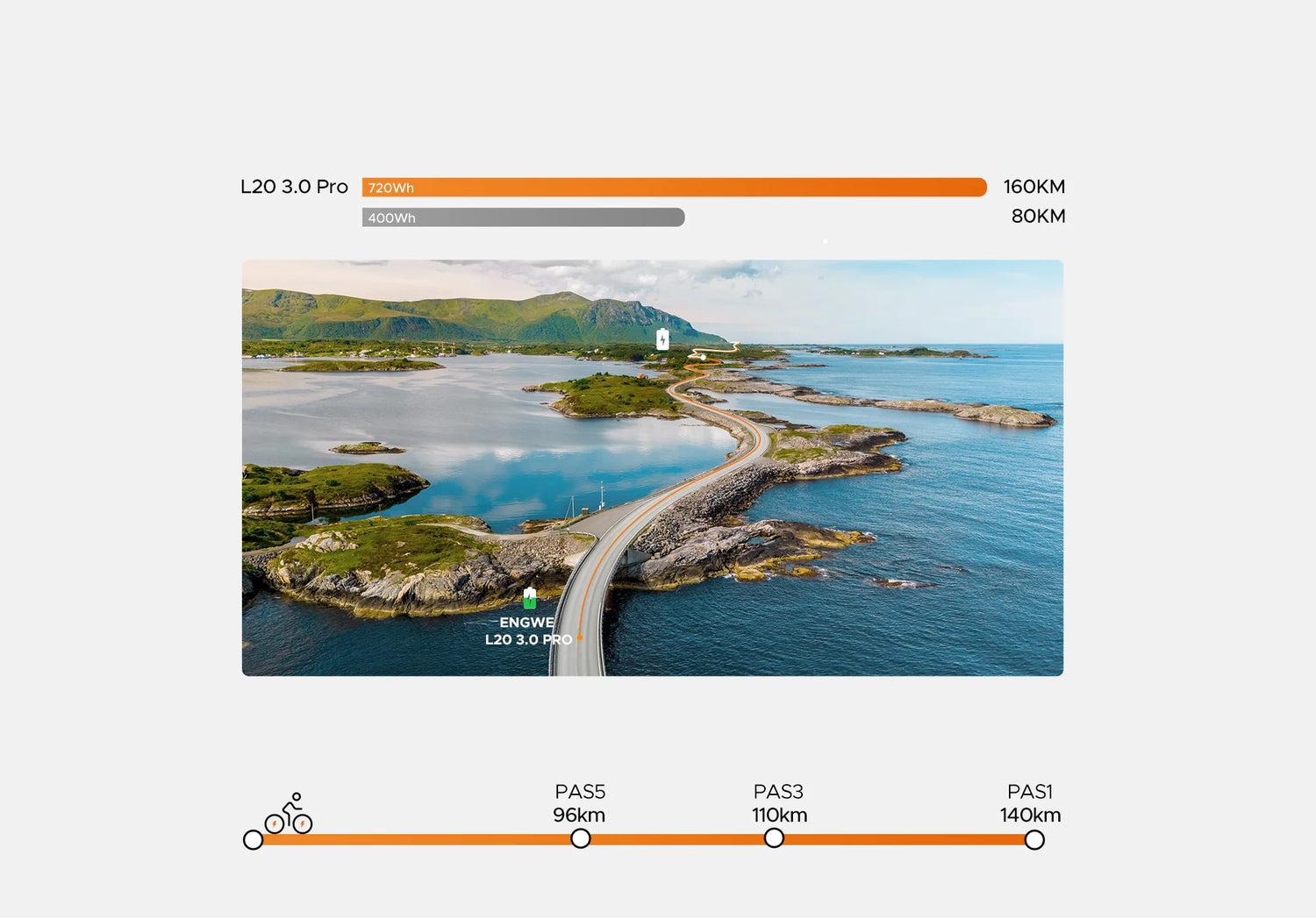

Lab Tested Range: 160 km (Fully Charged)

Real-World Range: 140 km (PAS 1) / 110 km (PAS 3) / 96 km (PAS 5)

Waterproof Ratings: IPX7 (Wiring), IPX6 (Display & Lights), IPX5 (Motor & Controller), IPX4 (Battery Box)

Terrain: Tarmac Roads & Bicycle Routes, Gravel-Paved Paths, Sandy Beaches & Grass, Country Roads & Paved Trails

Bike Weight: 32.8 kg (72.3 lbs)

Gross Weight: Approx. 42 kg (92.6 lbs)

Frameset

Frame Material: 6061 Aluminum Alloy, Internal Battery, Step-Through Design

Frame Style: Compact, Full Suspension

Fork: Hydraulic, Adjustable Lockout, One-Piece Die-Cast Aluminum

Rear Suspension: 30 mm Travel

Wheel Set

Tires: 20" × 3.0" Urban Hybrid Tires

Puncture Protection: 3 mm Anti-Puncture Layer

Wheels: 20-inch, 12-gauge Spokes, 36-hole, Double-Wall Aluminum, Black

E-Bike System

Motor: Mivice X700 Mid-Drive, 48V

Max Torque: 100 Nm

IOT: ENGWE IOT Module with GPS, 4G & Bluetooth

Assist System: Torque Sensor

Battery: 48V 15Ah (720Wh), Samsung 21700 Cells with BMS

Display: 3.5" LCD Color Display, ENGWE-Designed, Mid-Position

ENGWE App: App Control Available

Charger: 54.6V 8A Output

Front Light: 30 Lux with Integrated E-Horn

Rear Light: Automatically brightens When Braking or Shaking

Brakes

Brake Type: Hydraulic, Dual-Piston

Disc Rotor: 180 mm Front & Rear

Drivetrain

Chain: KMC E8S Anti-Rust, 112 Links

Chainring: 48T

Crank: 170 mm

Rear Derailleur: Shimano Tourney RD-TY300, 7-Speed

Shifter: Shimano SL-M315-7R

Cassette: 7-Speed, 14T-28T

Pedals: Boron Steel, Non-Foldable

Cockpit

Saddle: ENGWE Soft Saddle

Seat Post: 10-Level Adjustable

Handlebars: 680 mm Width

Stem: Foldable

Seat Clamp: Quick-Release

Unfolded

Ride Height 5'1" - 6'3" (155cm - 190cm)

Max Load Capacity 150kg (330 lbs)

Package Dimensions 144*27*64 cm

A-Handlebar Height 110.2cm

B-Total Length 172.0cm

C-Reach 51.2cm

D-Standover Height 38.0cm

E-WheelBase 116.5cm

F-Minum saddle Height 82.0cm

G-Maximum saddle Height 102.0cm

Folded

Folded Size

102*53*78 cm

A-Height 78 cm

B-Length 102 cm

C-Width 53 cm

L20 3.0 Pro E-Bike *1

Battery 48V 15Ah Samsung Lithium-Ion*1

Charger 54.6V 8A *1

Pedals *2

Front & Rear Fenders *1

Rear Rack *1

Bike Kickstand *1

Assembly Tools *1

User Manual *1
